Introduction:
In the realm of efficient event management and communication, Tonmind IP Audio solutions have emerged as a game-changer. This case study explores a real-world scenario where a client sought to leverage Tonmind IP speakers and Tonmind IP paging microphones to seamlessly broadcast events to designated sip speakers. Through a well-executed implementation strategy, the client achieved streamlined event communication and enhanced situational awareness.
Client Background:
Our client, a prominent establishment hosting various events, faced challenges in effectively disseminating event notifications to specific areas within their premises. They sought a solution that could simplify event broadcasting and improve responsiveness in different zones.
Solution:
Tonmind IP PA System presented an ideal solution to address our client's requirements. By implementing a carefully planned system configuration and utilizing innovative features, our client was able to achieve their goal.
Implementation Steps:
1. Setting Network Speakers RTP Addresses:

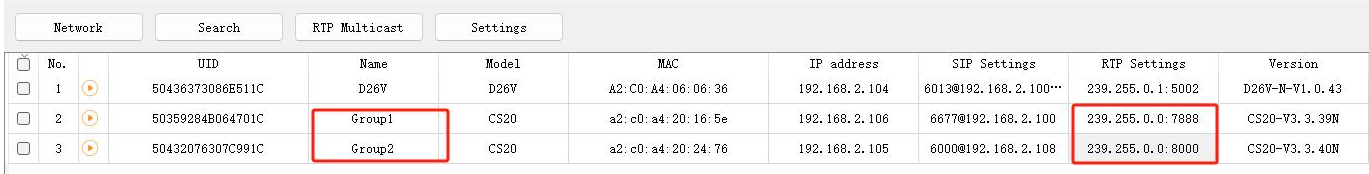

Within the IP TOOL group 1 configuration, two Tonmind IP speakers were assigned the RTP address 239.255.0.0:7888. Similarly, for group 2, the assigned RTP address was 239.255.0.0:8000. This ensured designated speakers would receive event broadcasts.

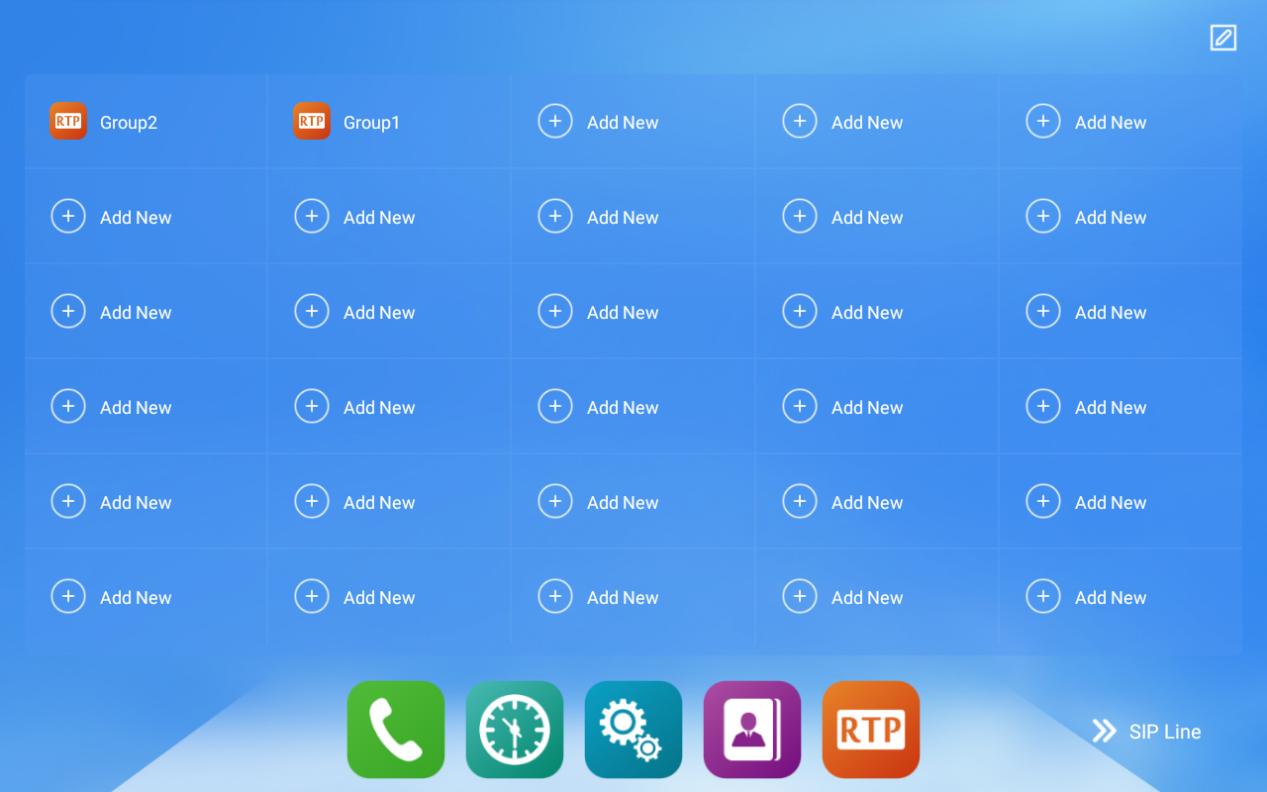

2. Configuring Tonmind IP Paging Microphone:

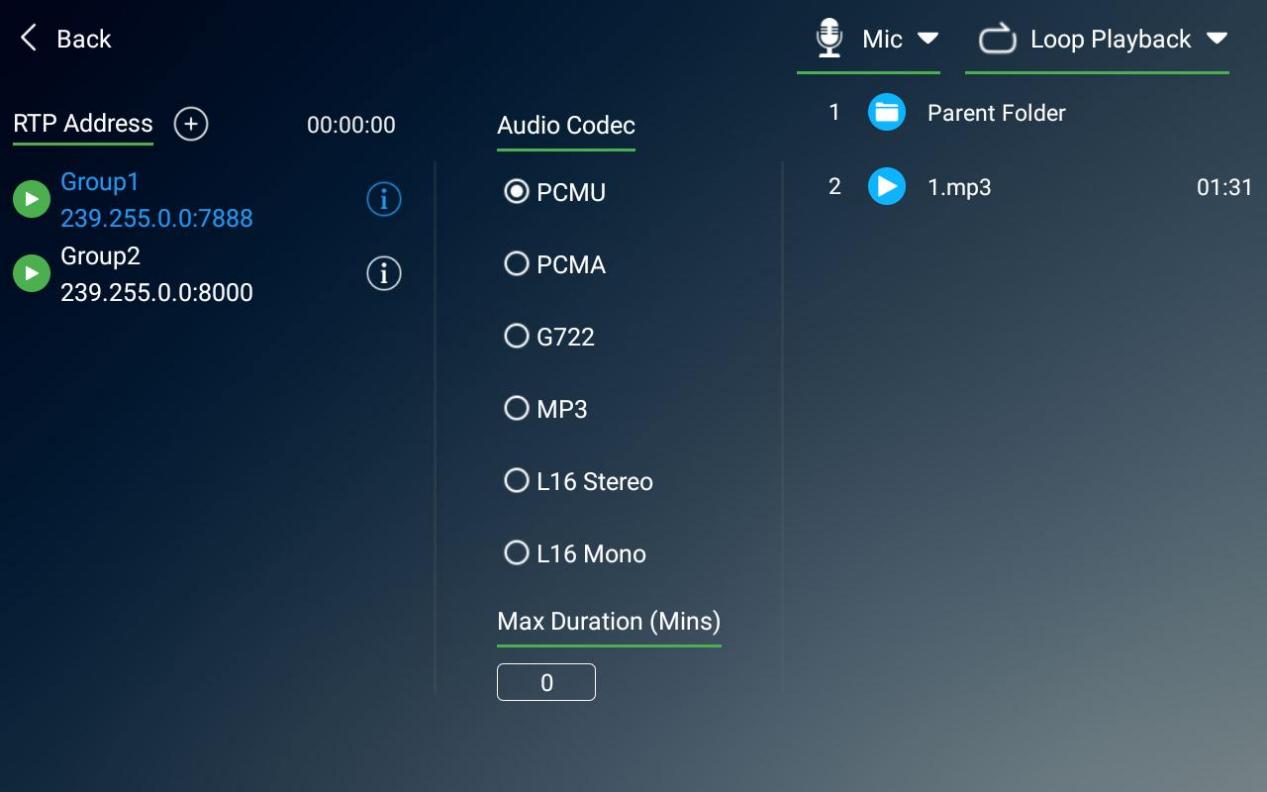

The Tonmind IP Paging MIC, in this case, the M20 model, was configured to align with the chosen IP speaker groups. Group 1 was set to RTP address 239.255.0.0:7888, while Group 2 was configured for RTP address 239.255.0.0:8000.
3. Setting Up Call Panels:

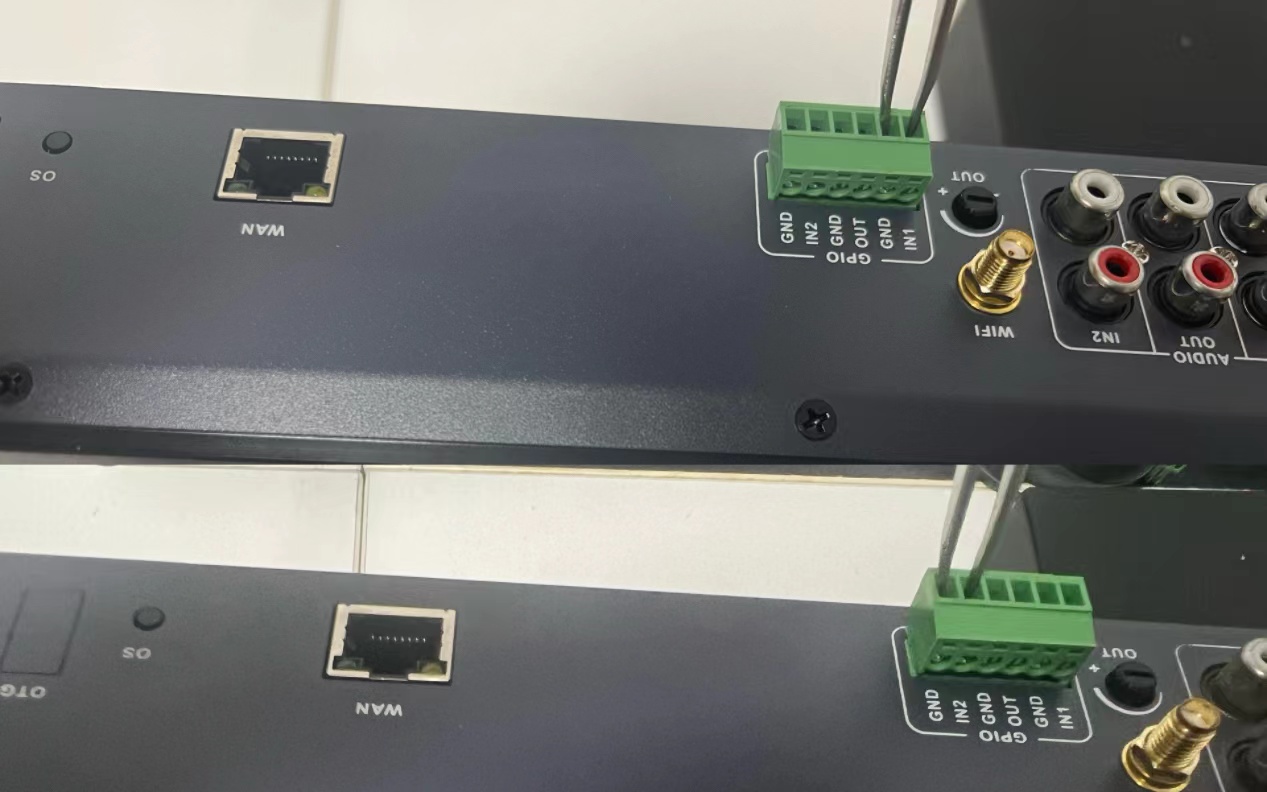

To facilitate communication, two call panels were assigned to groups 1 and 2, respectively. These call panels acted as triggers for event broadcasts. When an event occurred in a specific area, pushing the corresponding button on the GPIO &IN1 would activate a call to the corresponding group.
Results:
By deploying Tonmind IP Audio solutions, our client experienced a significant improvement in event broadcasting and communication efficiency. The integration of IP speakers, IP Paging Microphones, and call panels enabled them to promptly disseminate event notifications in designated areas within their establishment.
Benefits Achieved:
1. Streamlined Event Broadcasting:
With the Tonmind IP Audio solution, our client achieved seamless event broadcasts to designated speakers within their premises. This streamlined the communication process and ensured relevant parties were promptly informed about the events.
2. Enhanced Situational Awareness:
By strategically assigning IP speakers to specific zones, our client's staff and attendees gained improved situational awareness. They could easily identify the source and location of event broadcasts, enabling swift responses and appropriate actions.
3. Simplified Configuration and Operation:
The intuitive configuration process of Tonmind IP Audio and the user-friendly interface of the IP Paging Microphone made system setup straightforward. This resulted in simplified operation, allowing staff to efficiently manage event broadcasting without the need for extensive technical expertise.
Conclusion:
Through the successful integration of Tonmind IP speakers, IP Paging Microphones, and call panels, our client achieved their objective of streamlined event broadcasting. The implementation of this advanced IP Audio solution enhances situational awareness and enables prompt communication during events. Tonmind IP Audio continues to empower establishments across various industries, revolutionizing how event communication is executed and enhancing overall operational.
