In digital landscape nowadays, network security is a paramount concern for users. Tonmind recognizes the importance of ensuring the safety of their IP audio devices, including IP speaker, Onvif speaker, IP intercoms, IP PCB, and IP paging adapter. In this article, we will guide you on how to configure the firewall feature in Tonmind IP Audio to enhance network security. Whether you need to restrict access to a specific IP or create rules to limit unauthorized access, this guide will provide you with the necessary steps.

A firewall acts as a protective barrier between your network and external networks or devices. It monitors incoming and outgoing network traffic based on predefined rules, allowing or blocking connections accordingly. By configuring the firewall, you can control access to your Tonmind IP Audio devices and safeguard them from potential security threats.

Configuration Steps: follow below picture and steps.

First Situation:

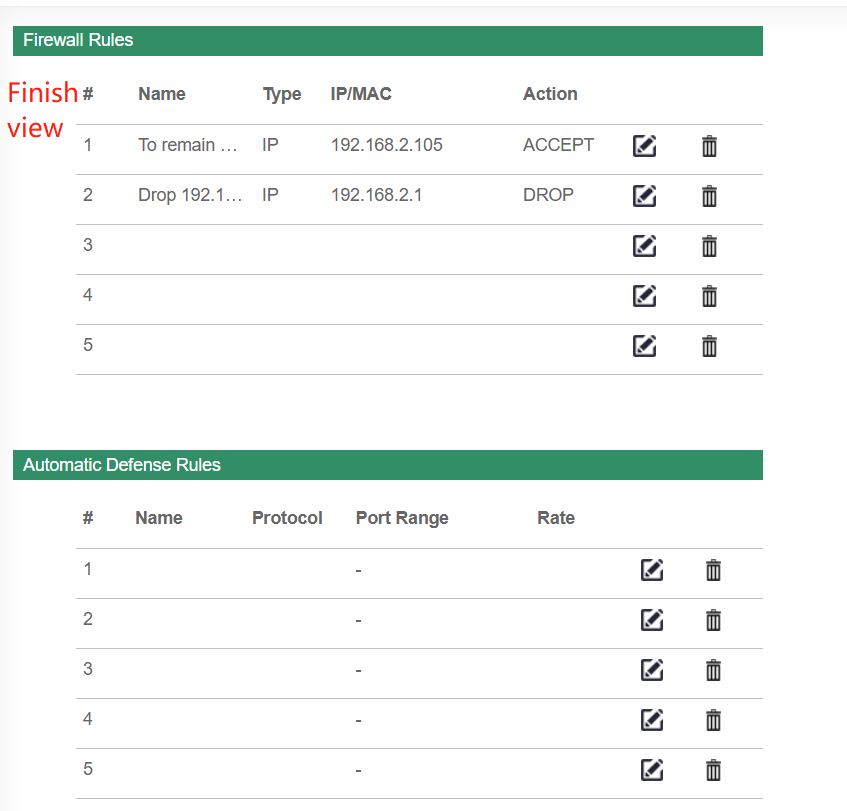

Please use below 2 rules combinations to drop all others but remain the only IP you need to control SIP speaker.

1. Open the Tonmind IP speaker configuration interface on your device.

2. Enable Firewall.

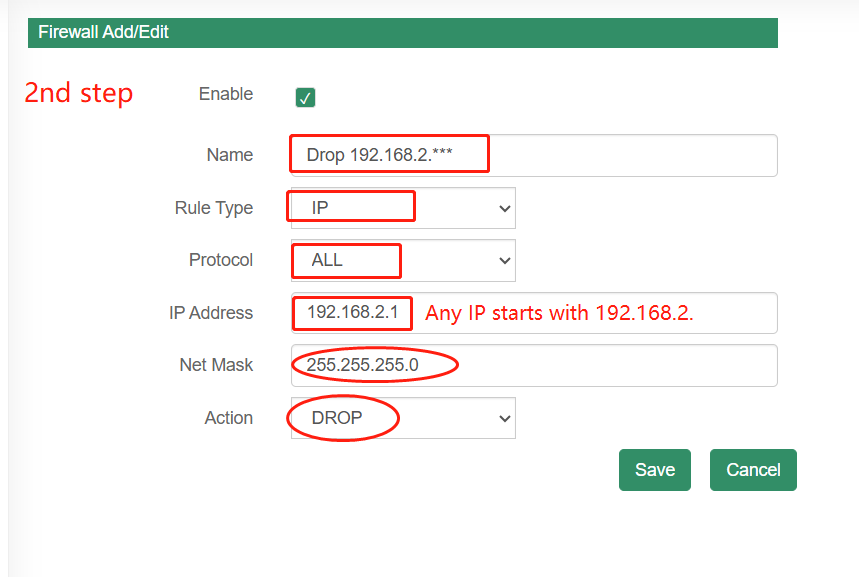

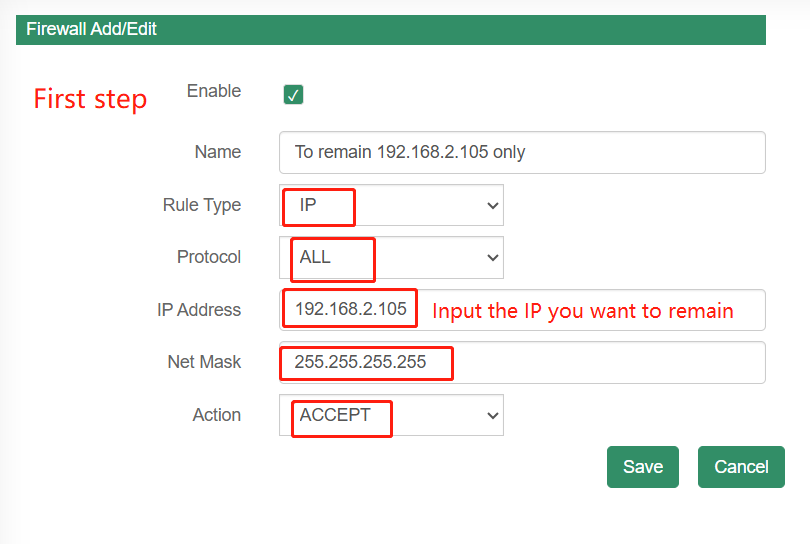

3. Add a new rule to drop all connections except for the specific IP address you want to allow.

4. Specify the IP address in the rule settings.

5. Fill the Net mask and choose the actions.

6. Save the configuration changes.

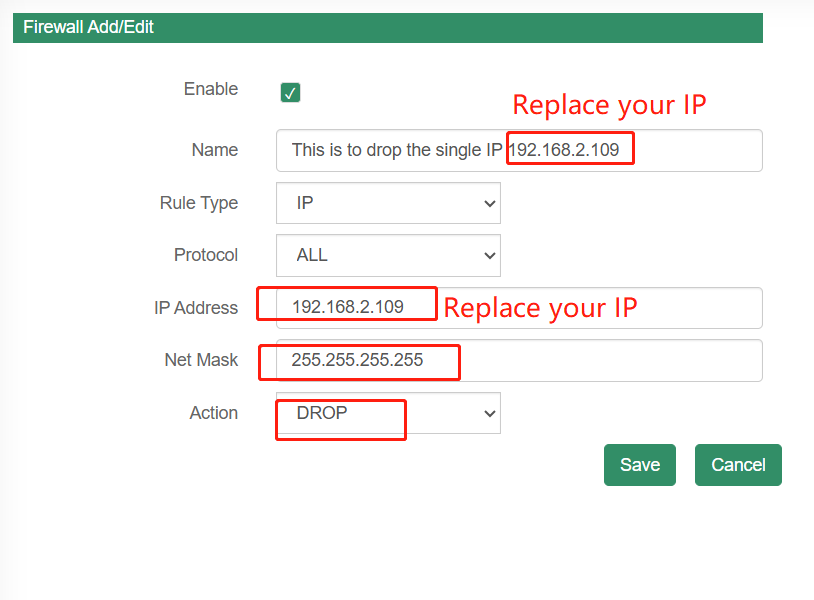

Second Situation: Blocking a Single IP

1. Enable Firewall.

2.. Create a new rule to drop connections from the single IP address you want to block.

3. Enter the IP address in the rule settings.

4. Fill the network mask and action.

5. Save the configuration changes.

By configuring the firewall feature in Tonmind IP Audio devices, you can enhance network security and protect your devices from unauthorized access. This guide has provided step-by-step instructions for two common scenarios: restricting access to a specific IP and blocking a single IP address. Taking the necessary precautions to secure your Tonmind IP Audio devices ensures a safe and reliable communication infrastructure for your organization
