The Tonmind SIP-T20 IP Paging Gateway offers a comprehensive solution for businesses seeking to enhance their communication systems. With its two-way intercom capability, high-quality audio transmission, protocol compatibility, pre-recorded message playback, alarm integration, versatile interface options, and convenient controls, this product empowers organizations to streamline communication, improve efficiency, and foster collaboration. Embrace the power of the Tonmind SIP-T20 IP Paging Gateway and propel your business towards enhanced IP communication efficiency and success.

Today we'll introduce you the practical application of T20 IP paging gateway. It can be widely applied in IP PA system，security field and different business solutions.

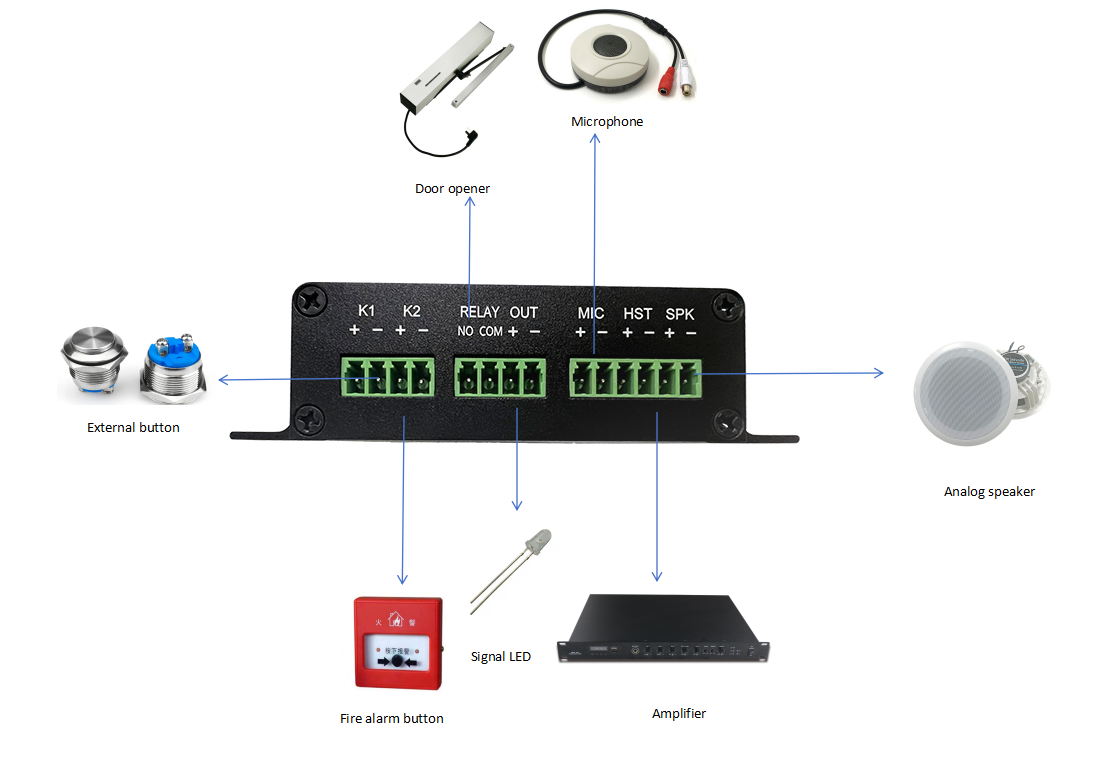

① K1 DSS Key

Connect to:

1. external keys

2. infrared probe and emergency switch

3. door sensor and other switch components

② K2 DSS Key

Connect to:

1. external keys

2. infrared probe and emergency switch

3. door sensor and other switch components

③ Relay NO COM Interface Control the alarm system on/off

④ IO Onput Interface

Cr Responding to:

1. 1.control the external amplifier power switch

2.the short-circuit input interface

3. login device security page settings

4. control the alarm light, electric locks and other

equipment

5. with the adjacent power port connection for

external equipment

⑤Microphone Interface

2.2K Ohm impedance electric condenser

microphone is recommended.

⑥ Headset Interface

Speaker audio line signal output impedance 32

Ohm, single ended output voltage 1.2V, used for

external headphones or amplifier.

⑦ Speaker Interface

Maximum support 15W speaker.

Tonmind SIP-T20 IP Paging Gateway, designed with a sleek black exterior and a compact form factor. With its built-in 15W amplifier and multiple interfaces including MIC input, Headset output, Speaker output, GPIO Alarm input, GPIO Alarm output, and Relay Alarm output, this SIP Paging Adapter offers seamless integration into your existing audio system.

The SIP-T20 allows you to connect analog speakers or amplifiers, transforming them into SIP Speakers or enabling IP Intercom functionality. Additionally, it supports alarm and microphone connections, expanding its utility beyond traditional paging systems. With compatibility with VoIP devices and ONVIF VMS/NVR, this versatile Paging Gateway ensures seamless integration with your existing infrastructure. Enjoy the benefits of two-way communication, pre-recorded messages in WAV/MP3 formats, schedule play, GPIO input, and HTTP control.

Whether it's for educational institutions, retail establishments, or commercial centers, the Tonmind SIP-T20 is a perfect choice for enhancing your PA System. Experience clear and efficient communication, improved scheduling capabilities, and effortless control with this advanced IP Paging adapter.
