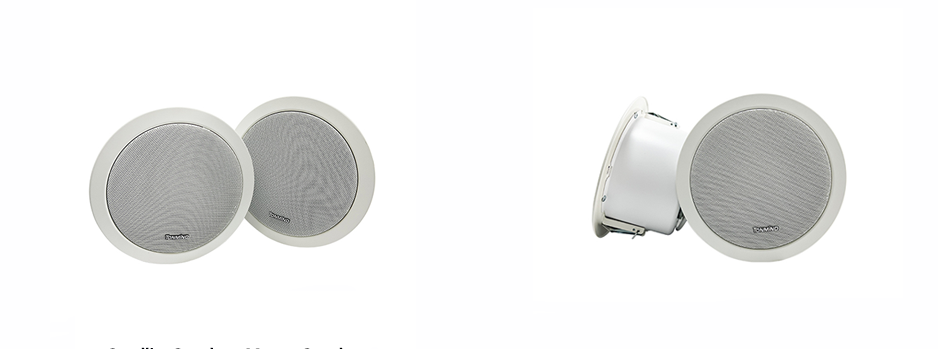

Tonmind 15W IP Celing Speaker SIP-S01A is consists of master speaker and satellite speaker, which works in pairs. SIP-S01A shares all the functions of other Tonmind IP Speaker, including compatible with VoIP, SIP devices via SIP, compatible with IP Camera VMS via ONVIF, supporting pre-recorded messages, HTTP API for alarm in transmit, 48K OPUS audio codec. Besides, SIP-S01A's advantage is cost-saving and power-effective. With the one pair speakers, it can reach as much rated of power.

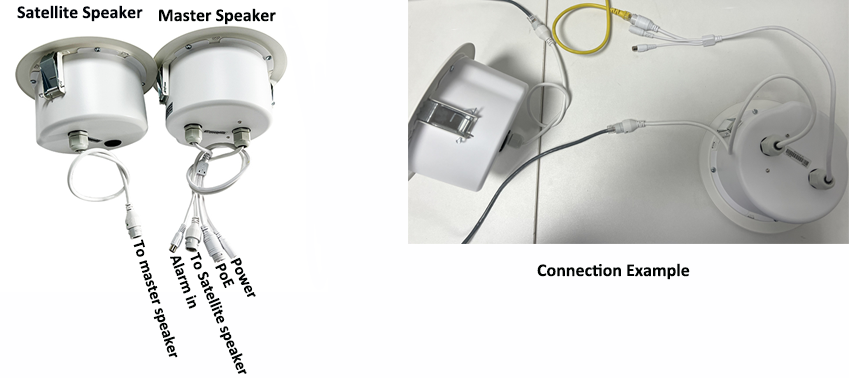

Below we list the connection guide of SIP-S01A master speaker and satellite speaker.

1. Connect the master speaker and satellite speaker via one network cable.

2. The master speaker has Alarm in, PoE and DC Power interface. Power on the speaker by PoE or DC 12V/24V.

3. The speakers are connected successfully, then can start configure via web.
