In certain projects such as schools, factory, and offices, hotel, customers often need to map different network sites into a single network for easy management of Tonmind's IP speakers, IP intercoms, and IP microphones using PA System Pro. Today, we will explore the process of registering and calling in PA System Pro across different networks, which is widely applicable in various scenarios.

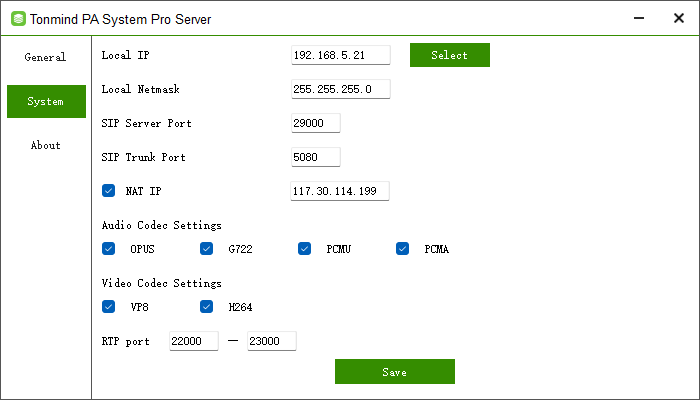

Step 1: Set up in PA Pro
To begin, let's configure PA System Pro with the following parameters:
- PC local IP: 192.168.5.21
- Public IP: 117.30.114.199
- Modify SIP Server Port to 29000
- Modify RTP Port to 22000-23000

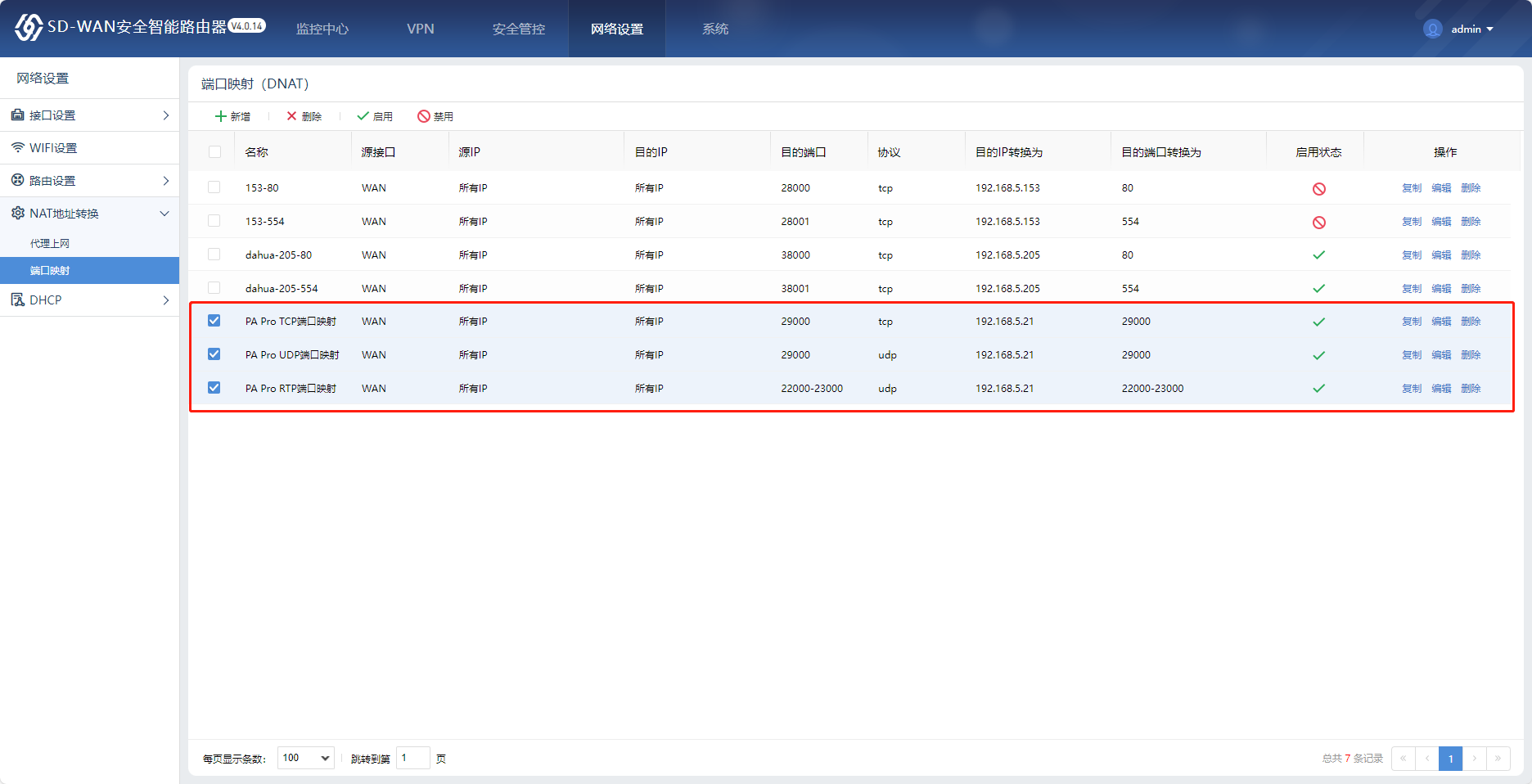

Step 2: Port Mapping on the Router
On the router connected to the computer, perform the following port mapping:
- TCP port 29000 maps to 29000 of 192.168.5.21
- UDP port 29000 maps to 29000 of 192.168.5.21
- RTP ports 22000-23000 map to 22000-23000 of 192.168.5.21

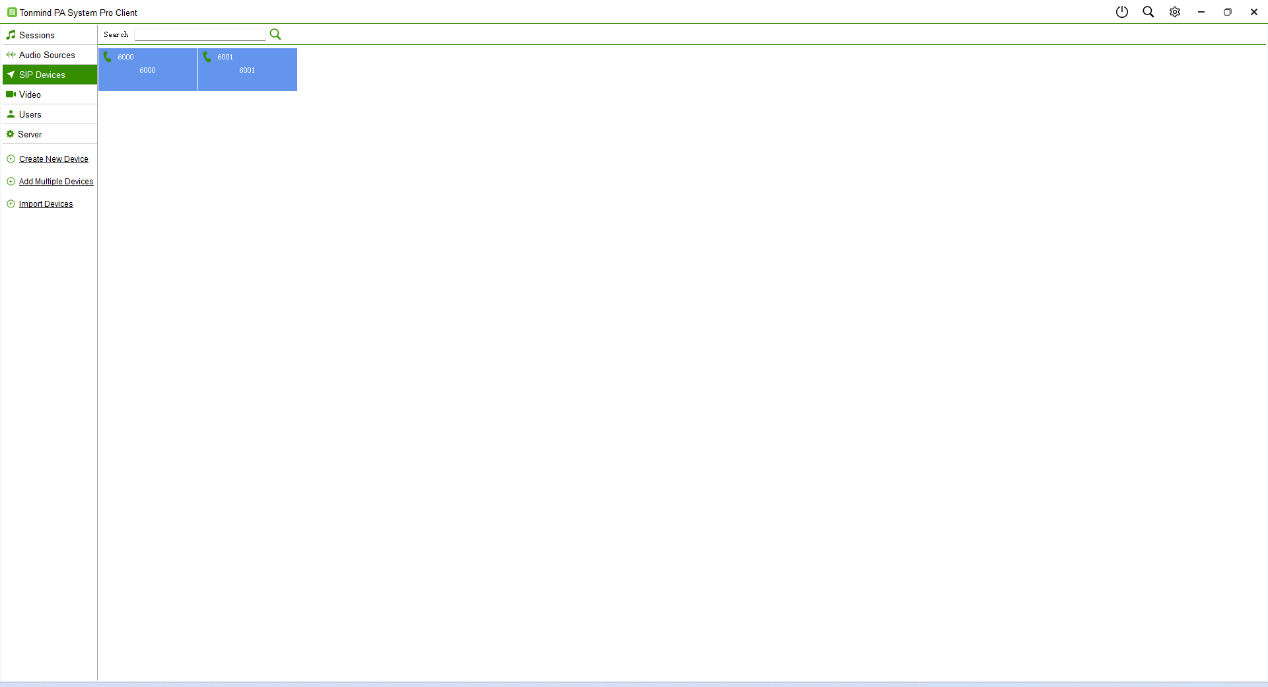

Step 3: Register and Configure Extensions
In PA System Pro, register SIP extensions 6000 and 6001, then proceed with the following steps:
- Add a playlist to PA Pro Session 3000, and ensure the volume is set to 0 (to avoid mixing during broadcast)
- Within Session 3000, add SIP extension 6001

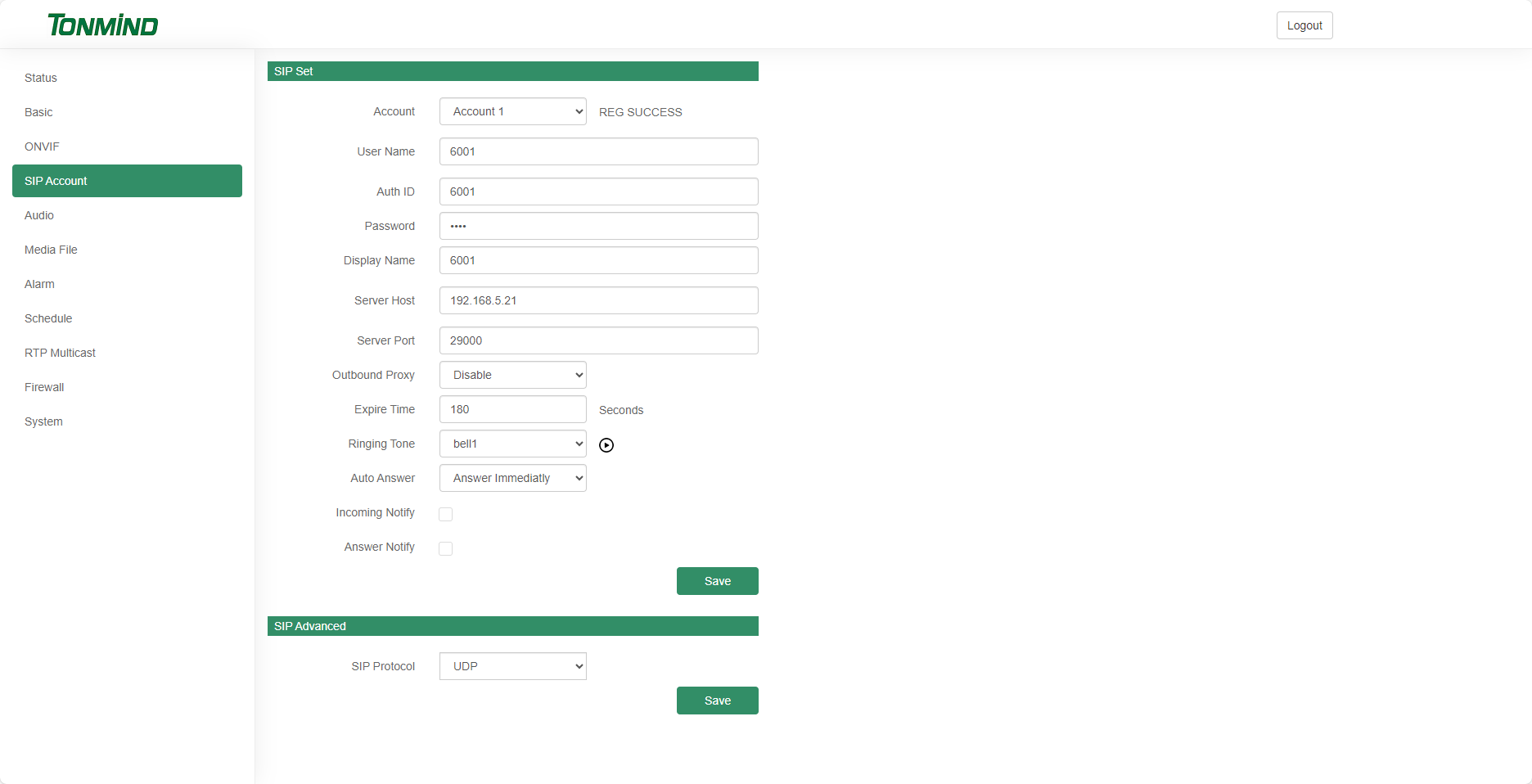

Step 4: Register the Speaker to PA Pro
On the same network, register the corresponding speaker to PA System Pro using extension 6001.
Step 5: Testing Across Different Networks
To test across different networks, follow these steps:
- Connect your laptop to your mobile phone's 4G hotspot

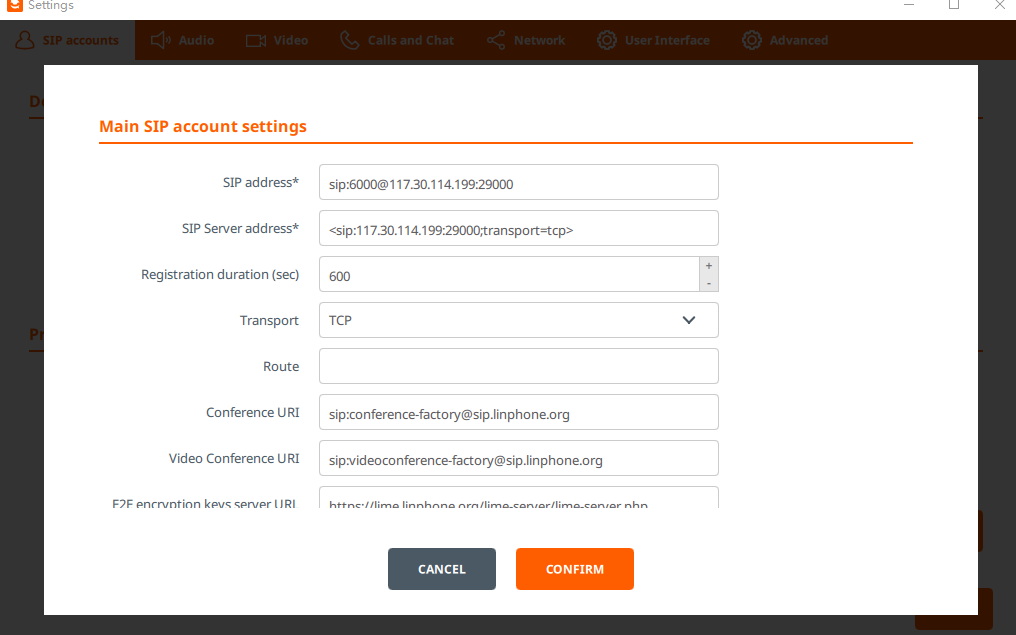

- Use Linphone (SIP softphone) to register to extension 6000 on PA System Pro
- Fill in the server address as 117.30.114.199 and the server port as 29000
-Call 3000 to enable broadcasting, Calling 6000 can directly talk to 6000, so that SIP registration and calls between different networks can be realized.
Tonmind IP PA System provides customizable IP audio solutions, tailored to your needs. By following the registration and calling process outlined above, you can easily manage and control SIP speakers, IP intercoms, and IP microphones across different networks. Experience the convenience and versatility of Tonmind's IP PA system in various project environments, ensuring seamless communication and efficient audio management.
