SIP-S22T, IP67 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S22TOrder(MOQ):
10Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
GreyLead Time：
1 WeekWeight：
2 KGProduct Description
The IP Horn Speaker is nice looking with round shape design. It's perfect to install in ourdoor enviroment due to IP67 waterproof design. Built-in 30W aplifier delivers loud and excellent sound. It can be applied to play background music, annoucements, security or fire alarm linkage. It supports http API control, alarm in and schedule play. It is compatible with SIP & ONVIF protocols, enduring seamless integration with VoIP systems and security networks.
IP Based Speaker Feature
• Built-in 30W amplifier delivers loud and excellent sound.
• IP67 waterproof design for installation in outdoors.
• PoE eliminates need for local power supply.
• 48K OPUS Audio Codec enables excellent sound quality .
• Support web firmware upgrade for easy maintenance.
• Standard SIP protocol to compatible with other SIP devices.
• Compatible with IP Camera VMS/NVR via ONVIF.
• Support Pre-recorded messages.
• Support HTTP API for alarm in transmit.
• Suppurt RTP Multicast as alternation of SIP backend system.
|
Audio |
|
|
Codec |
OPUS 48K, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8kHz |
|
Speaker |
|
|
Max SPL |
120dB |
|
Frequency Response |
350Hz ~ 8KHz |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: G711U, G711A, GSM, MP3, WAV.
|
|
Amplifier |
|
|
Amplifier Description |
Built-in 30W Amplifier |
|
General |
|
|
Material |
ABS (IP67 water-proof) |
|
Rate Power |
30W |
|
Power Supply |
PoE or DC 12V/24V |
|
Installation |
Wall Mounted |
|
Dimensions |
246 x 292mm |
|
Weight |
2 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
SIP Horn Speaker User Manual |

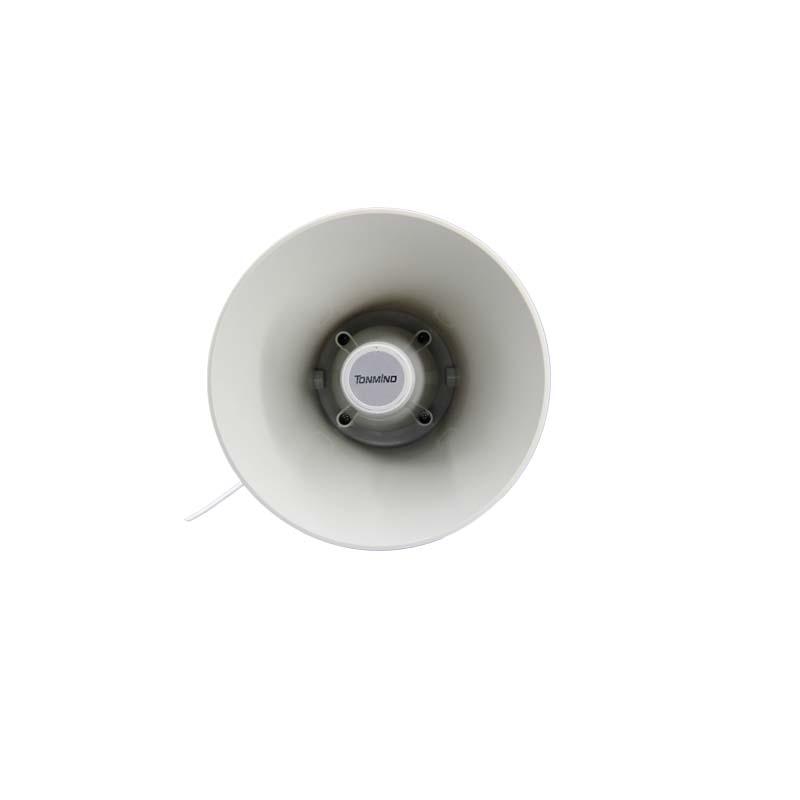

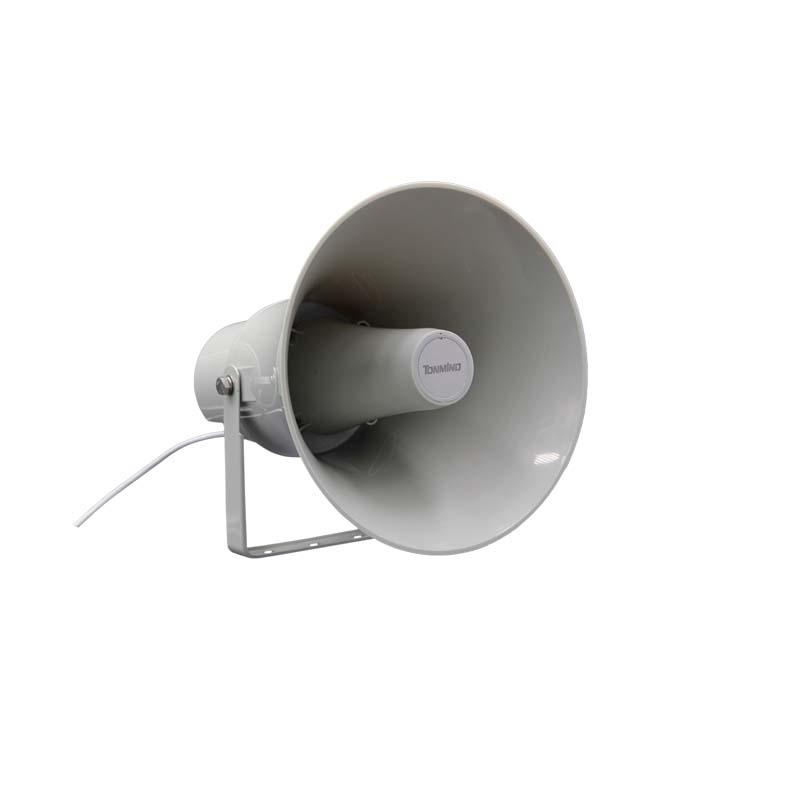

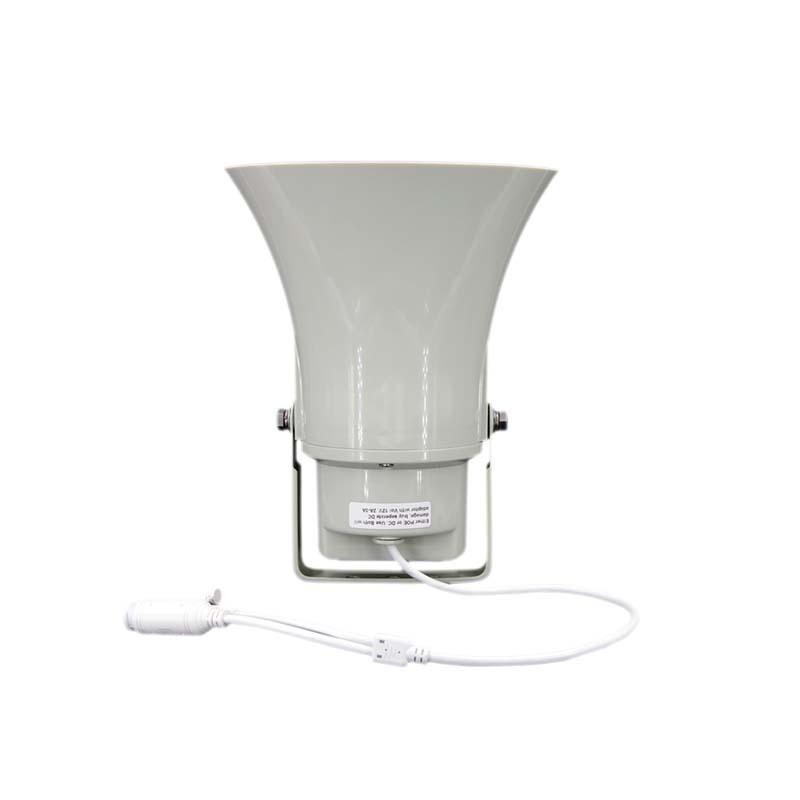

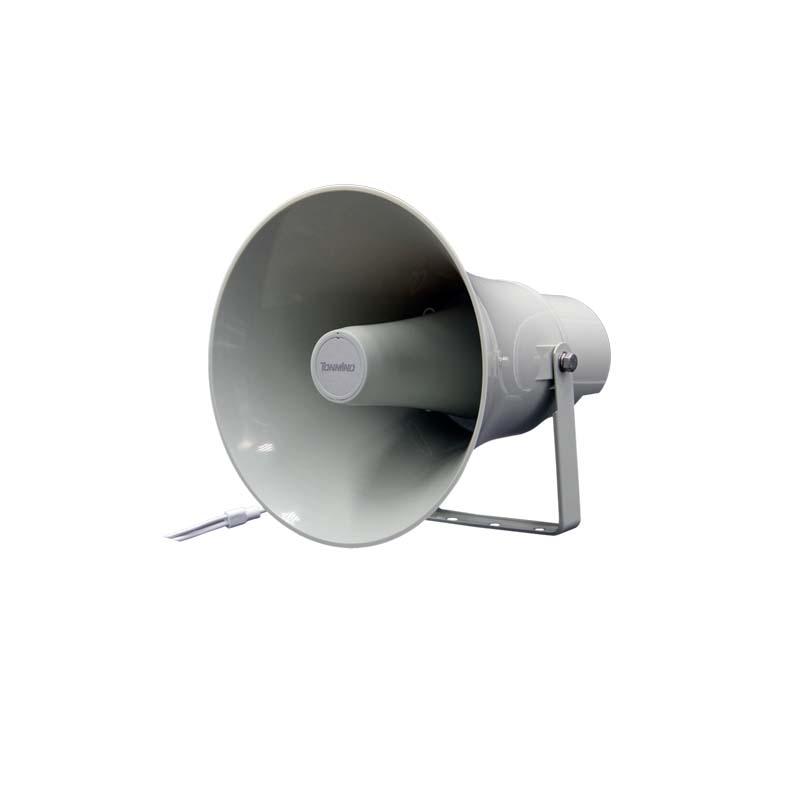

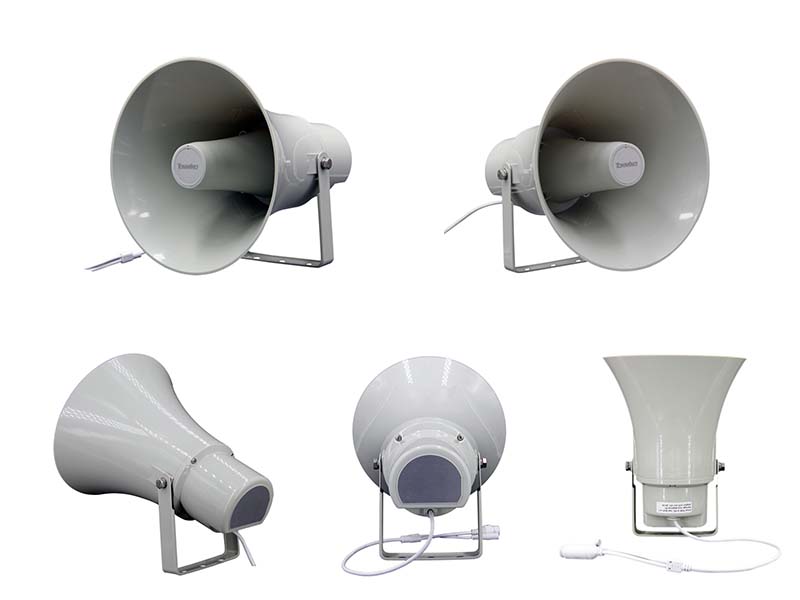

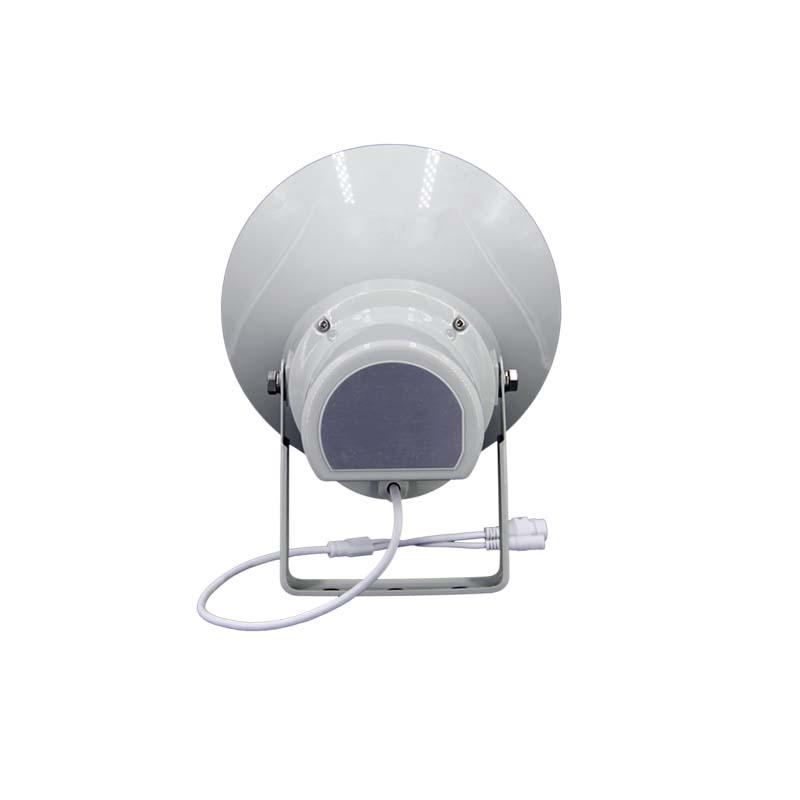

Product Image
