Item NO.:
SIP-S03MOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1.95Product Description
Tonmind SIP-S03M 30W SIP Onvif Ceiling Speaker with built-in MIC, designed to deliver exceptional audio performance in indoor environments such as schools, office buildings, malls, and churches. With its versatile features, this speaker provides seamless integration with SIP & Onvif. Equipped with pre-recorded messages, alarm input, and audio input, it offers flexible control options. Its HTTP control feature enables convenient management. The speaker delivers high-quality sound with its 30W amplifier and utilizes advanced technologies including AEC, AGC, and ANR. which ensure crystal-clear audio transmission. Built-in MIC desigen allows two-way audio communication.
SIP Ceiling Speaker Feature
• Support Two-way Intercom Communication
• Compatible with SIP & ONVIF Protocol
• Support Pre-recorded Messages
• Support HTTP URL, Alarm in, Audio in
• 48K OPUS Audio Codec, AEC, AGC, ANR
• 30W Amplifier, PoE Power Supply
|
Audio |
|
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
|
MIC |
|
| Buill-in MIC | Yes |
|
Speaker |
|
|
Max SPL |
110dB |
|
Frequency Response |
93Hz ~ 20KHz
|
|
Frequency Range |
500-2KHZ +-10dB 400-12KHZ +-20dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support SIP protocol for intergration with VoIP systimes, intergrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
|
Amplifier |
|
|
Amplifier |
Built-in 30W Amplifier |
|
General |
|
|
Material |
Metal |
|
Rate Power |
30W |
|
Power Supply |
PoE or DC 12V/24V |
|
Installation |
In Ceiling |
|
Dimensions |
265 x 105 mm |
|
Weight |
1.95 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network Ceiling Speaker Quick Start Guide |

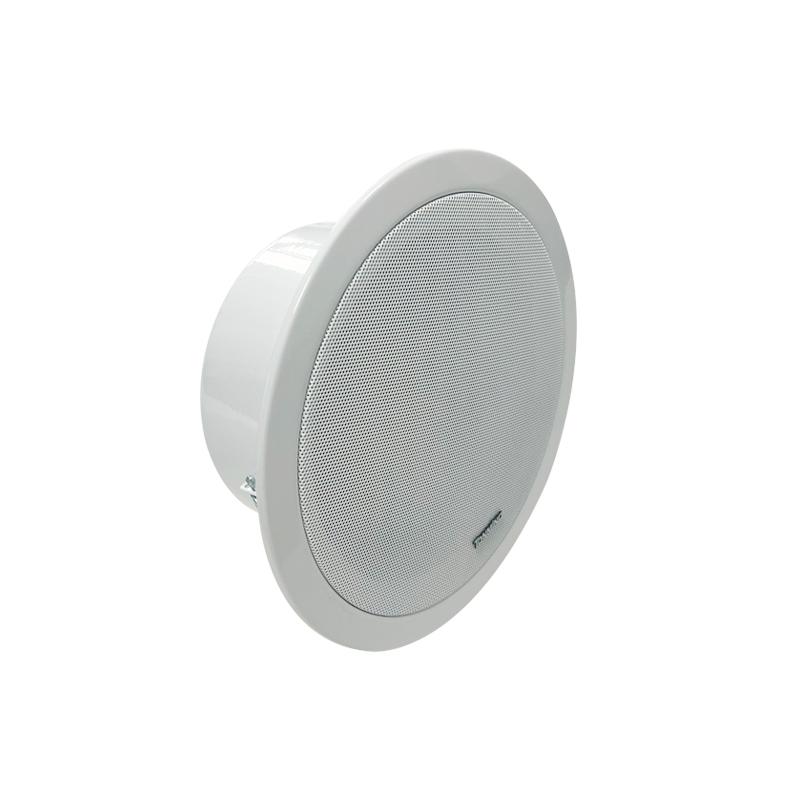

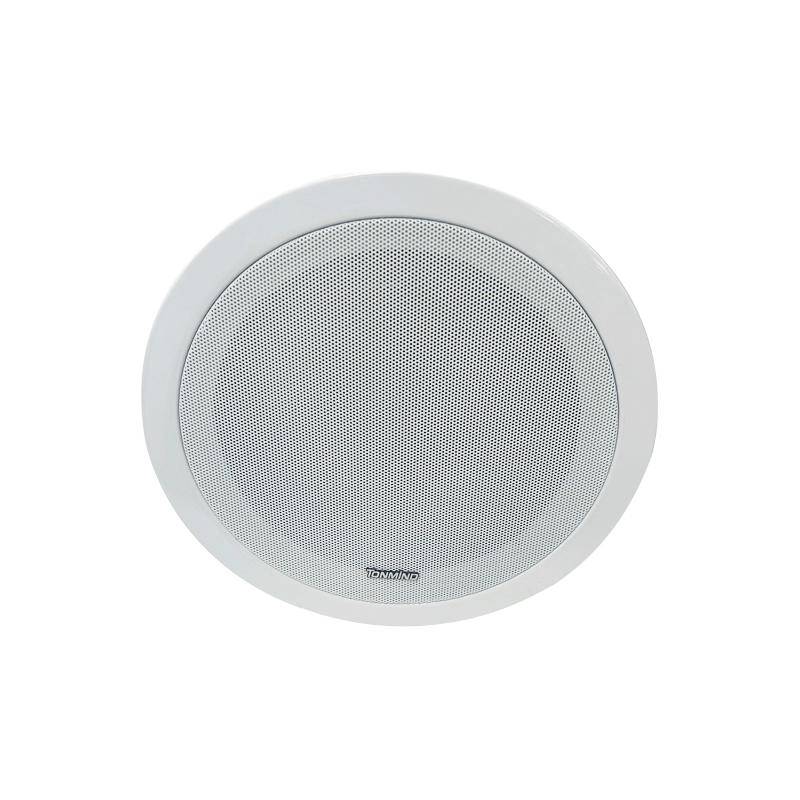

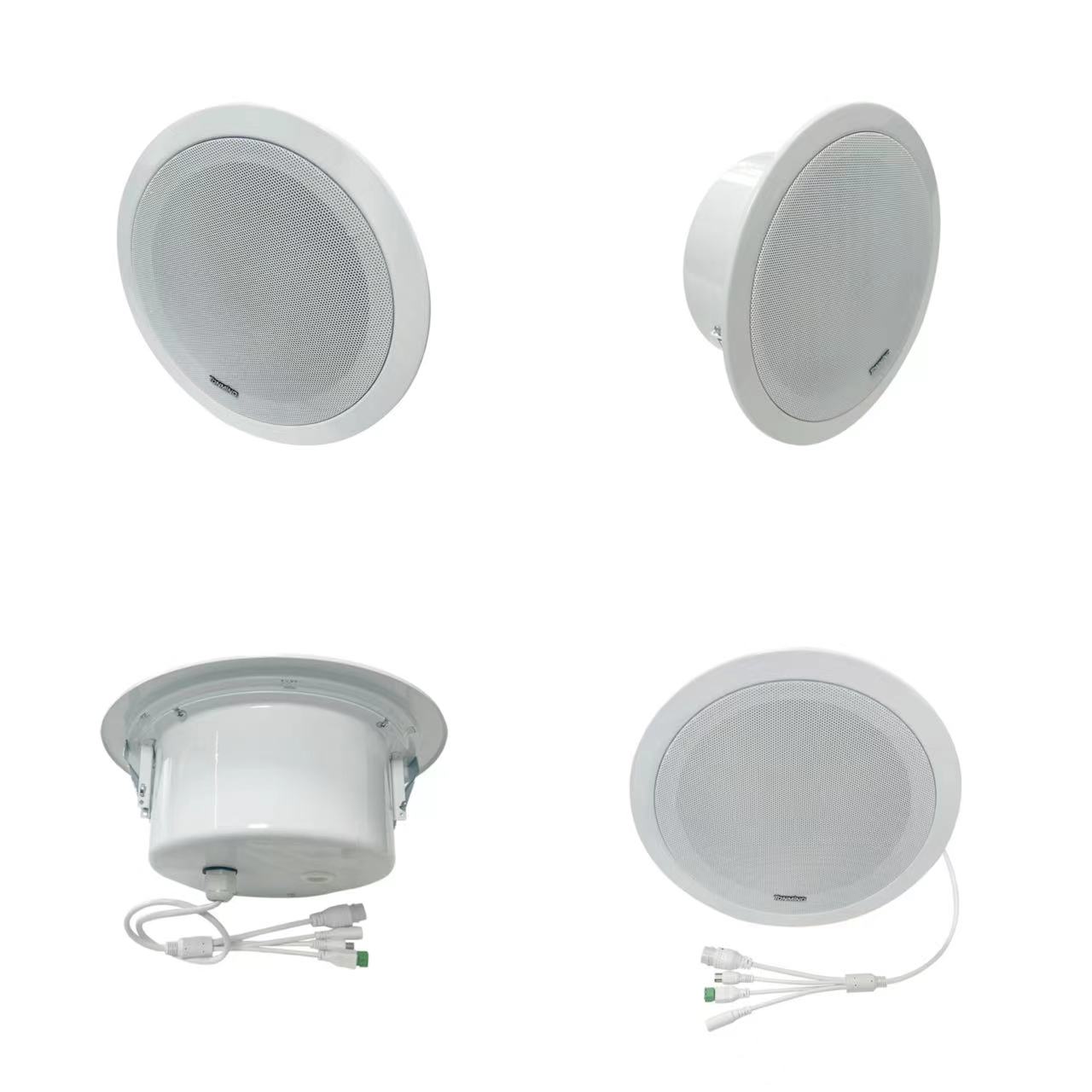

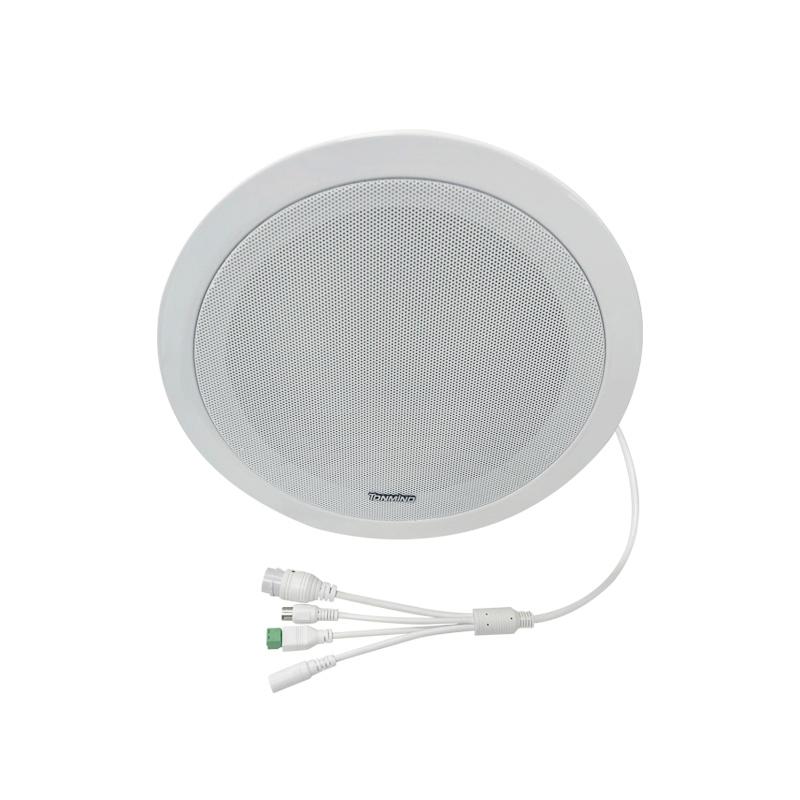

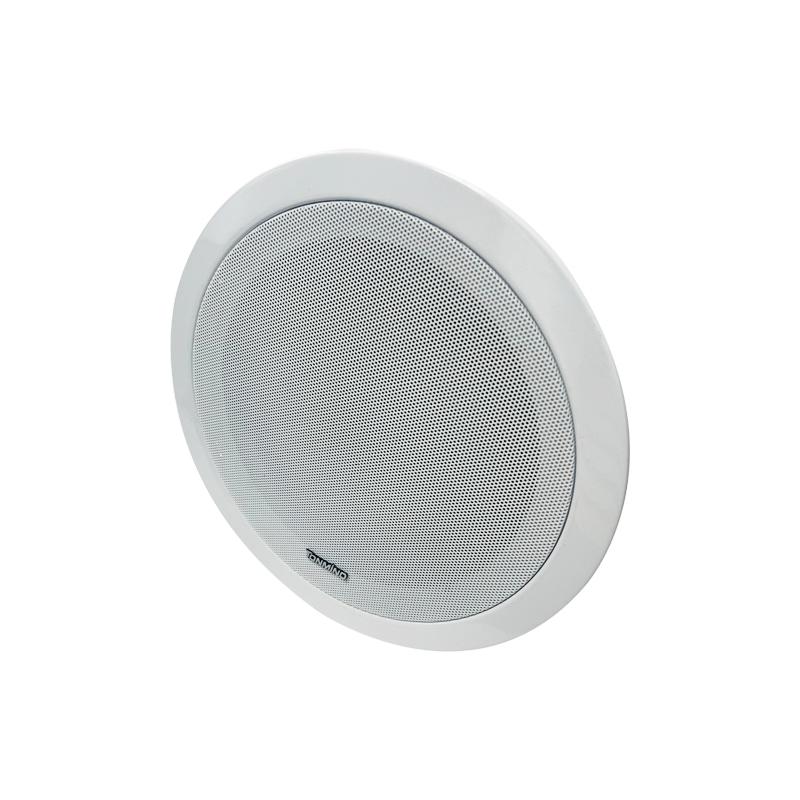

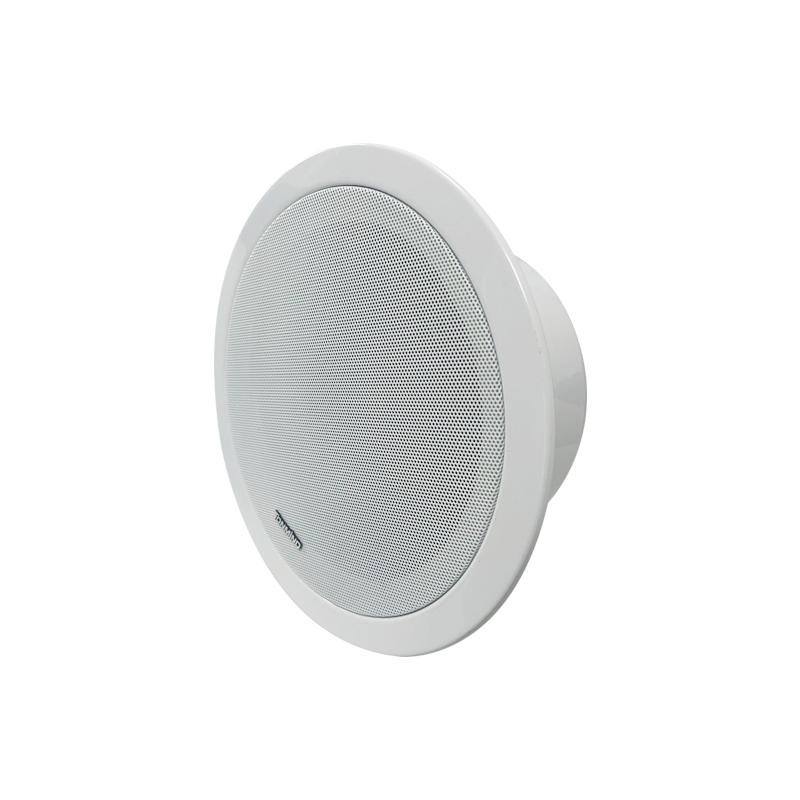

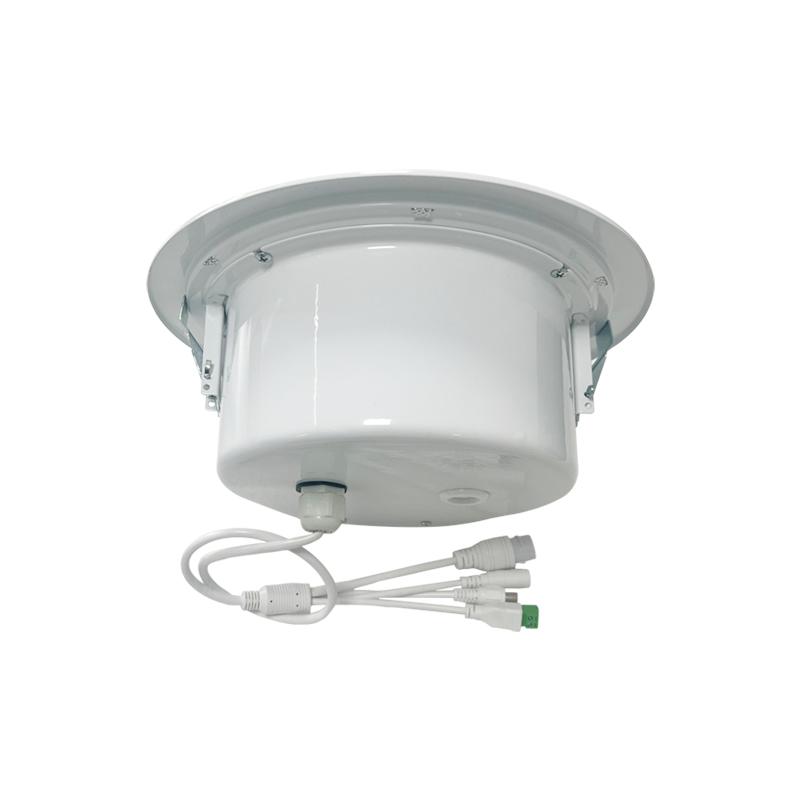

Product Image
