SIP-S21H, IP66 Waterproof, 15W, Buil-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S21HOrder(MOQ):
1Payment:
T/T, Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1.3KGProduct Description

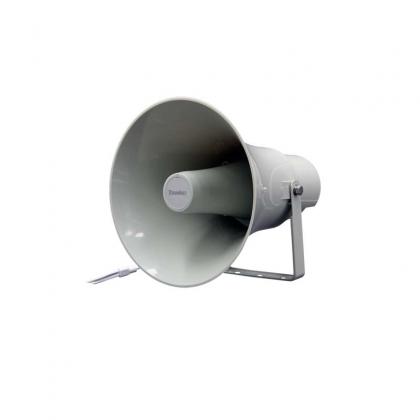

The IP Horn Speaker SIP-S21H is nice looking with flat shape design. It's perfect to install in ourdoor enviroment due to IP66 waterprood design. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio manager software: Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Horn Speaker Feature
• Two-way intercom communication
• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
• Compatible with IP Camera VMS/NVR via ONVIF
• Support Pre-recorded messages
• Support HTTP API for alarm in transmit
• 48K OPUS Audio Codec, AEC, AGC, ANR
• 15W amplifier, PoE Power Supply
|
Audio |
|
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
|
MIC |
|
| Buill-in MIC | Yes |
|
Speaker |
|
|
Max SPL |
113dB |
|
Frequency Response |
300Hz ~ 8KHz |
|
Frequency Range |
500-2KHZ +-10dB 400-12KHZ +-20dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support SIP protocol for intergration with VoIP systimes, intergrated with SIP/PBX.
Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
|
Amplifier |
|
|
Amplifier |
Built-in 15W Amplifier |
|
General |
|
|
Material |
ABS (IP66 water-proof) |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
| Interface |
Alarm in, Audio in, DC Power, PoE |
|
Installation |
Wall Mounted |
|
Dimensions |
225*165*240mm |
| Weight |
1.3KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network Horn Speaker Quick Start Guide |

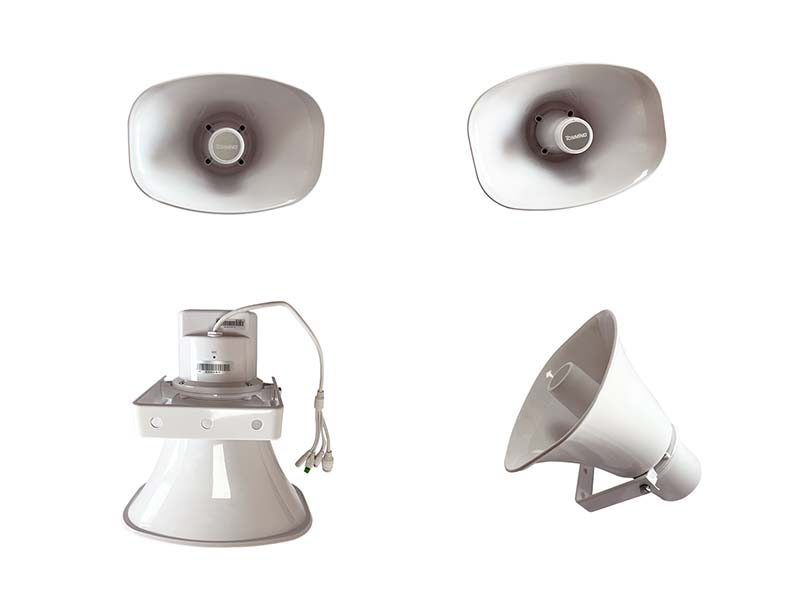

Product Images
