SIP-S21M, IP67 Waterproof, 30W, Buil-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Audio in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S21MOrder(MOQ):
10Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
2Product Description

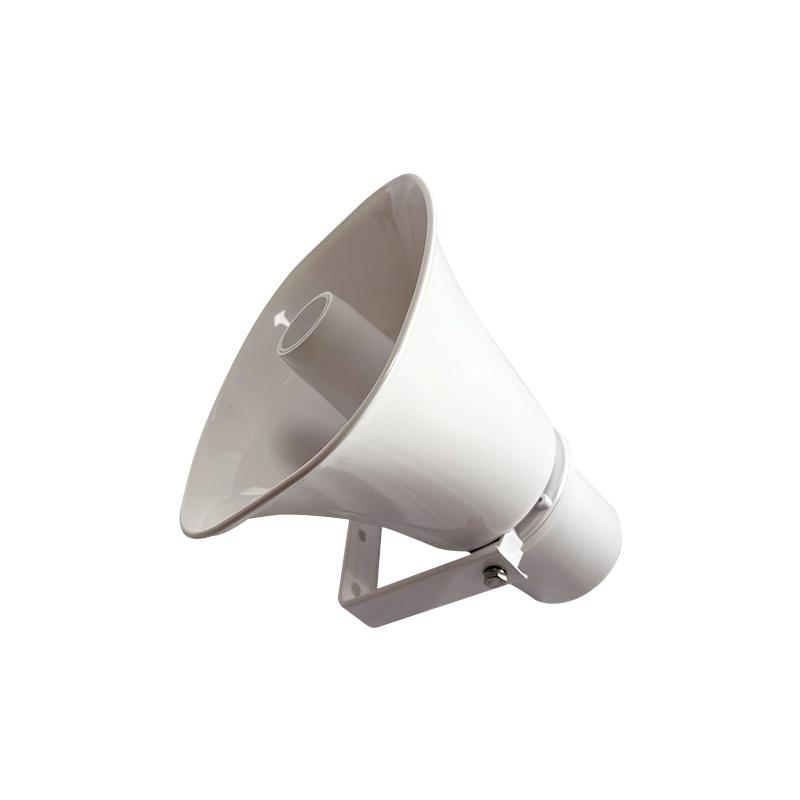

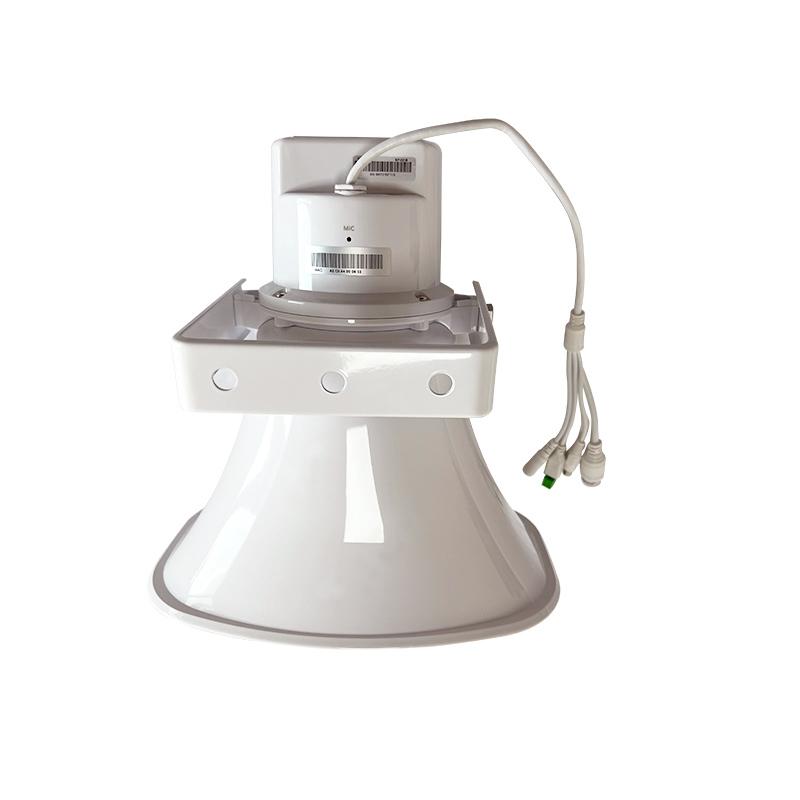

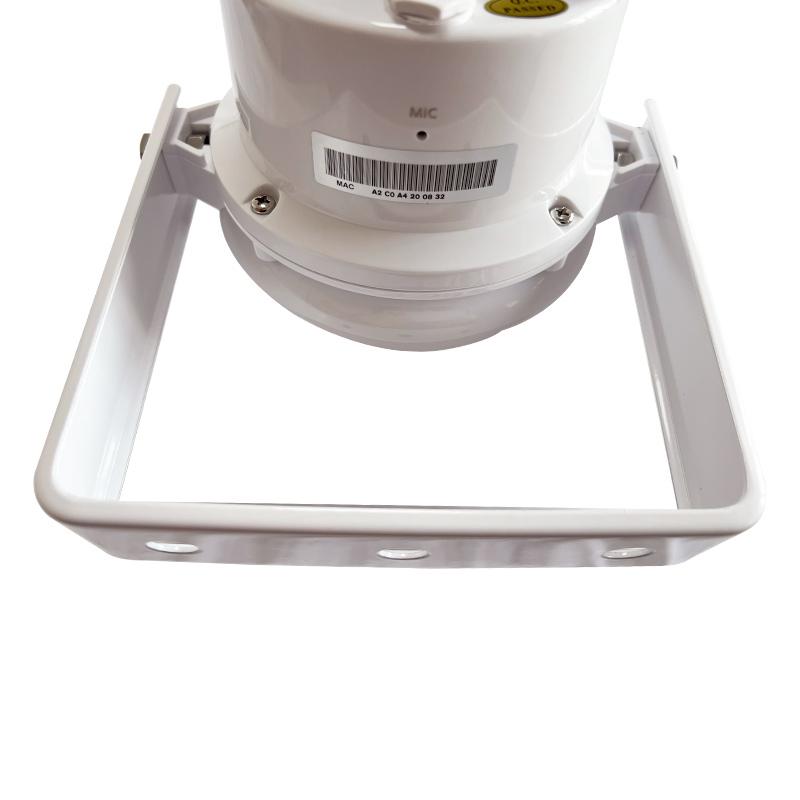

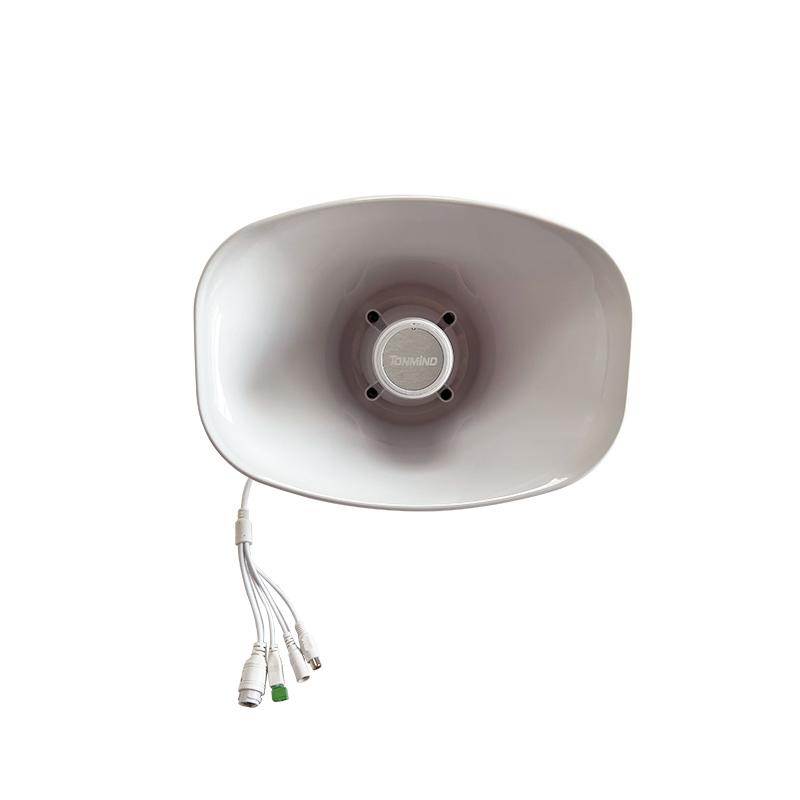

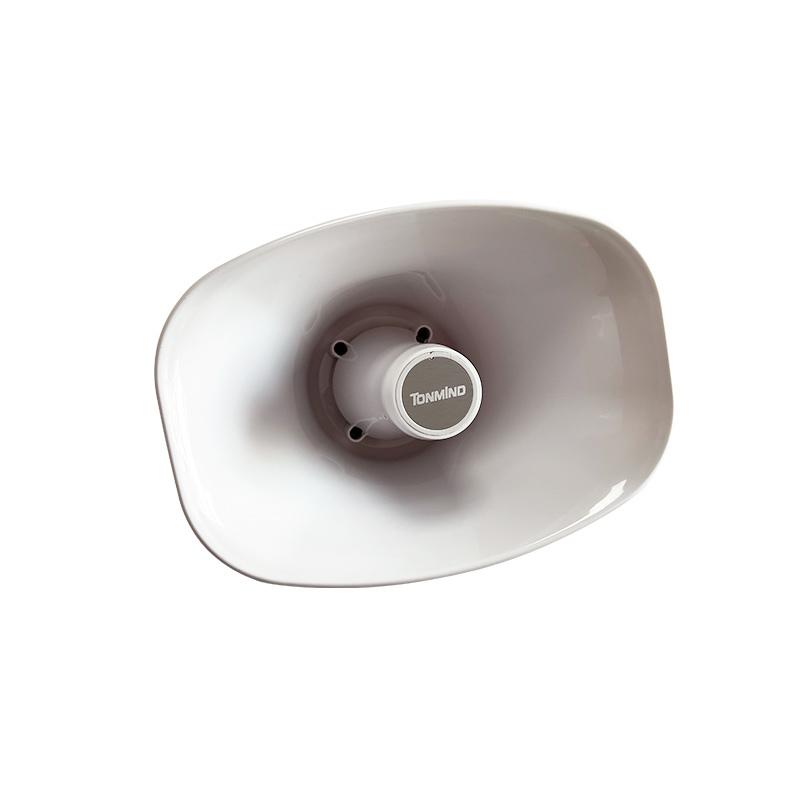

The IP Horn Speaker SIP-S21M is nice looking with flat shape design. It's perfect to install in ourdoor enviroment due to IP66 waterprood design. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Horn Speaker Feature
• Two-way intercom communication
• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
• Compatible with IP Camera VMS/NVR via ONVIF
• Support Pre-recorded messages
• Support HTTP API for alarm in transmit
• 48K OPUS Audio Codec, AEC, AGC, ANR
• 30W amplifier, PoE Power Supply
• TF Card function optional
|
Audio |
|
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
|
MIC |
|
| Buill-in MIC | Yes |
|
Speaker |
|
|
Max SPL |
120dB |
|
Frequency Response |
350Hz ~ 8KHz |
|
Frequency Range |
500-2KHZ +-10dB 400-12KHZ +-20dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support SIP protocol for intergration with VoIP systimes, intergrated with SIP/PBX.
Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
|
Amplifier |
|
|
Amplifier |
Built-in 30W Amplifier |
|
General |
|
|
Material |
ABS (IP66 water-proof) |
|
Rate Power |
30W |
|
Power Supply |
PoE or DC 12V/24V |
| Interface |
GPIO Alarm in, Audio in, TF Card (optional) |
|
Installation |
Wall Mounted |
|
Dimensions |
285*205*290mm |
| Weight |
2 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network Horn Speaker Quick Start Guide |
Software Diagram
Product Image
