K26V, SIP & ONVIF, two-way intercom, 2M pixels camera, PoE, relay, output.
Item NO.:
K26VOrder(MOQ):
1Payment:
T/T, Western Union, PaypalProduct Origin:
ChinaColor:
BlackLead Time：
1 WeekProduct Description
The SIP-K26V is a smart IP video board designed for two-way audio communication over IP networks. It is compatible with SIP and Onvif Profile S protocols and can be seamlessly integrated with existing communication systems. The system is equipped with advanced technologies such as echo cancellation, automatic gain control and noise reduction to ensure clear, high-quality audio transmission. PoE power supply, easy installation, no additional power cable. The system is equipped with a 2M pixel camera and TF card slot options to support video surveillance and recording. The IP board also supports IO outputs and relays, as well as microphone and speaker interfaces, extending its functionality and applicability. It's customizable and flexible to be designed into IP video intercom meeting for different customer demands.
IP Video Board Feature
• Two-way intercom communication.
• SIP & Onvif Profile S protocol compatible
• 48K OPUS Audio Codec, AEC, AGC, NR.
• 2M pixels camera, PoE power supplier
• Support lO out and relay
• MlC and speaker interface, TF card slot
Specification
| Protocol |
SIP, SIP P2P, ONVIF, HTTP, HTTPS, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, NTP |
|
Aideo Codec |
OPUS 48KHz, MP3 44.1KHz, G.722 ADPCM 16KHz, G.711U 8KHz, G.711A 8KHz, GSM
|
|
Video Codec |
H.264, MJPEG
|
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
|
|
Network Interface |
10/100 Base-TX, RJ45 |
| Function |
Compatible with VoIP Devices and ONVIF VMS, Two-way Communication, Pre-recorded Messages, Schedule Play, GPIO in, HTTP control
|
|
Built-in Amplifier |
1.5W
|
|
Power Supply |
PoE or DC 12V |
|
Interface |
1*MIC input, 1* Speaker output, 2*Alarm IO input with LED, 1* Audio out(HST), 1* IOinput, 1* IO output, 1* Relay (NO/COM/NC), 1* 12V DC in
|
| Application | Intercom/ Door Phone |
|
Dimensions |
78mm *79mm * 30mm
|
|
Operating Temperature
|
-30℃ — +60℃
|
|
Operating Humidity
|
5%-85%
|
|
Warranty |
2 years |

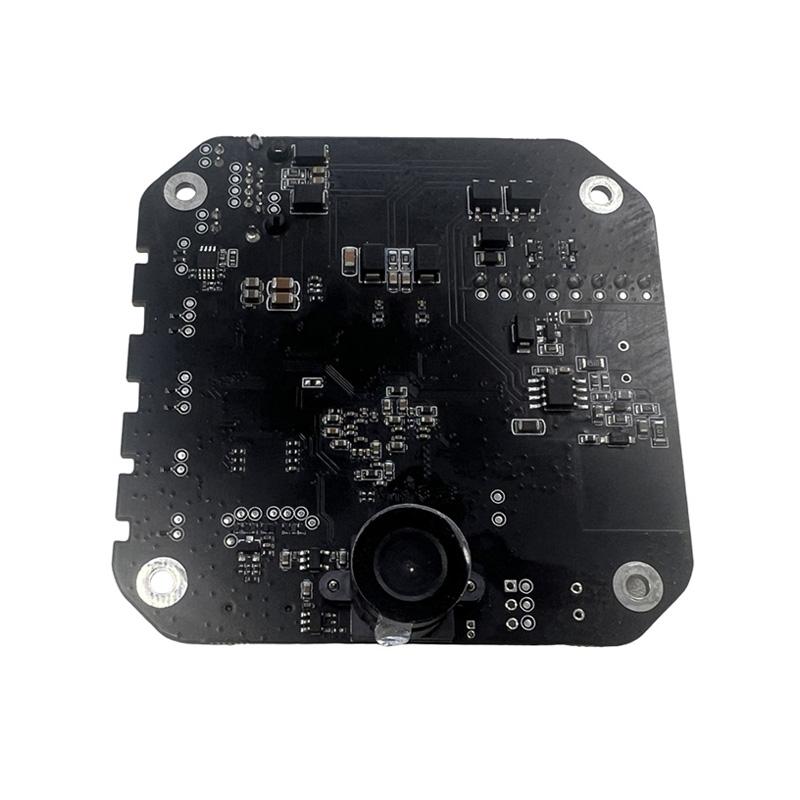

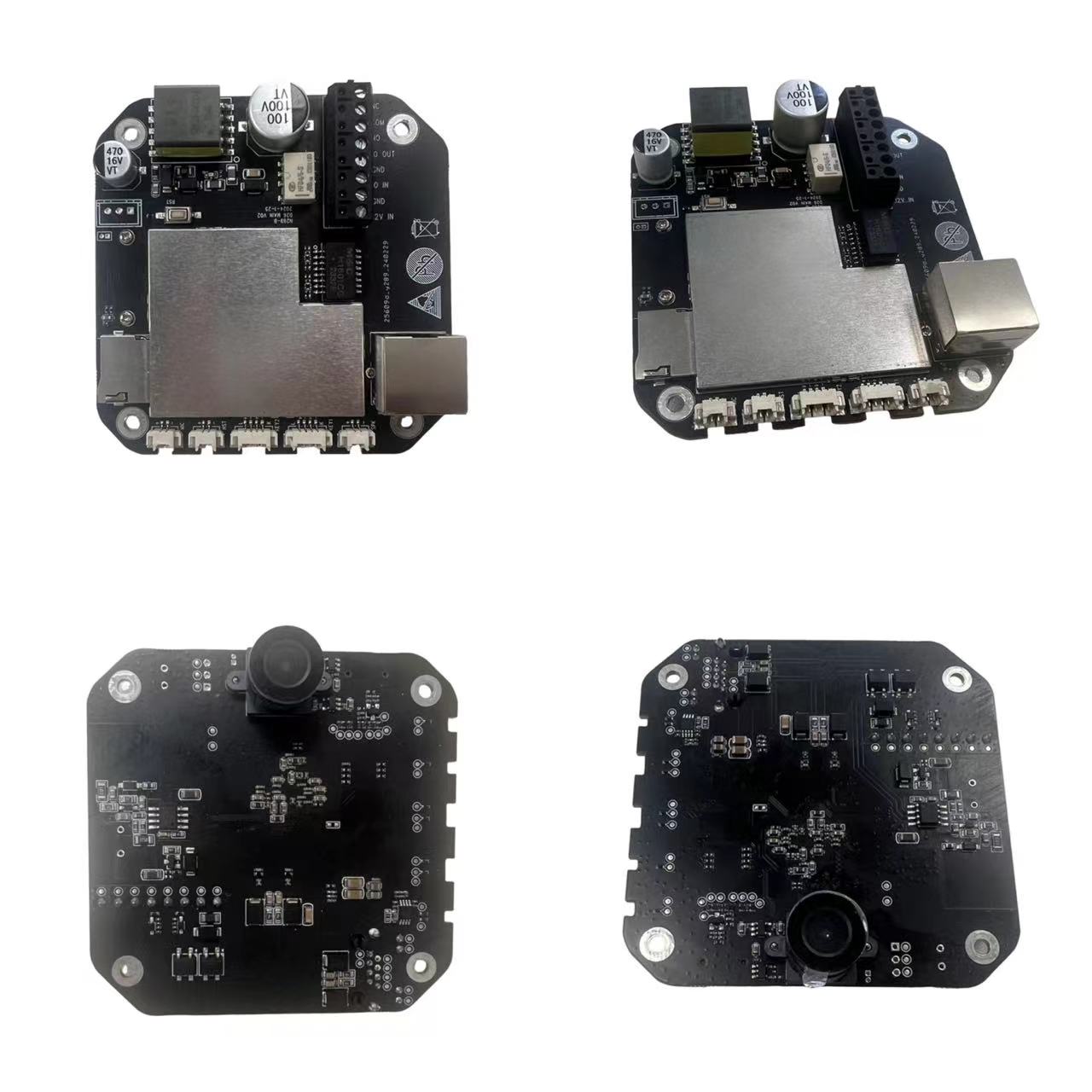

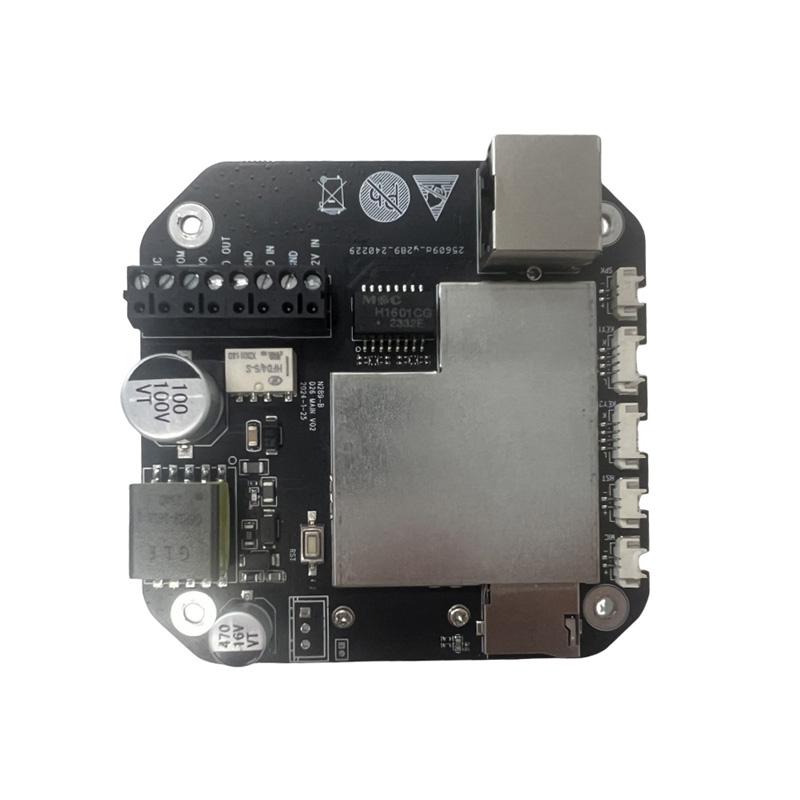

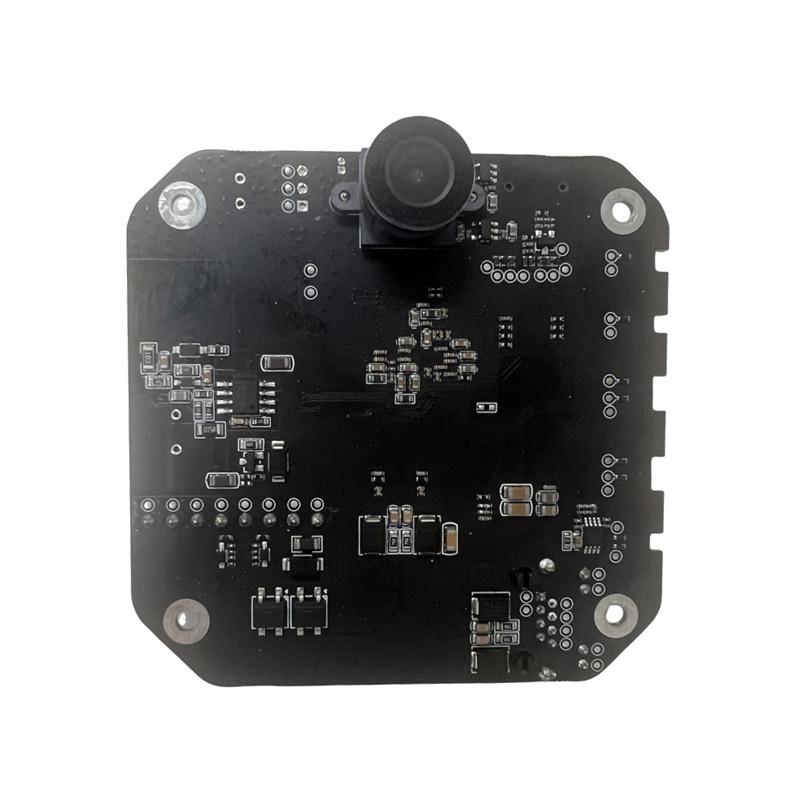

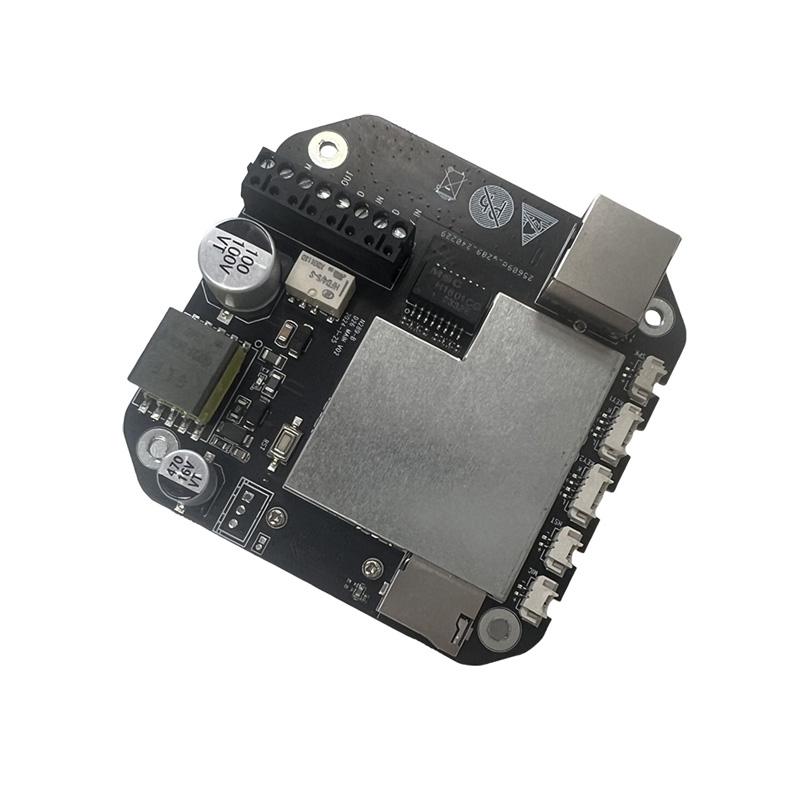

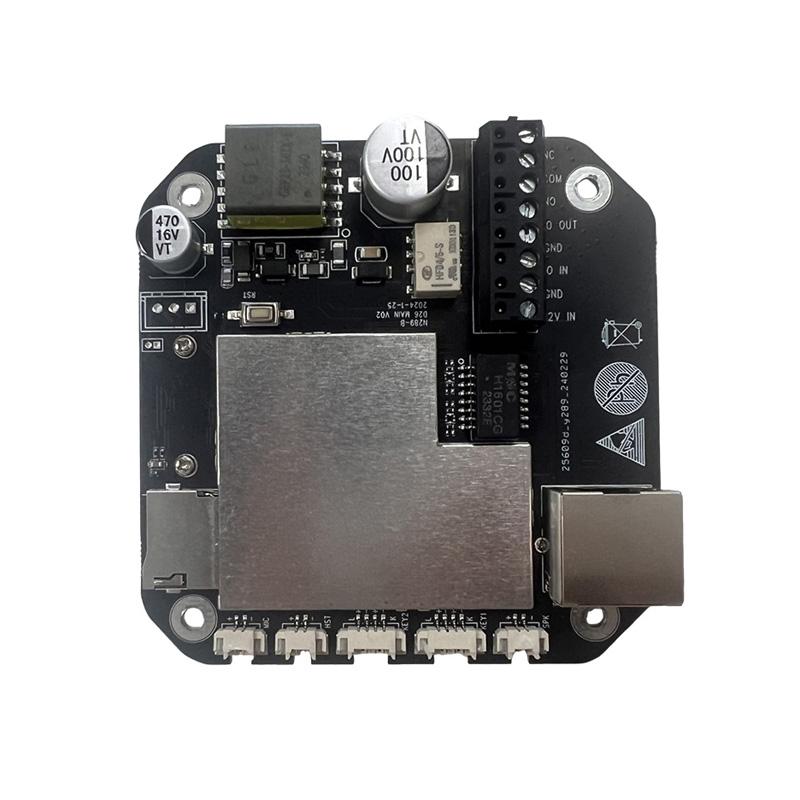

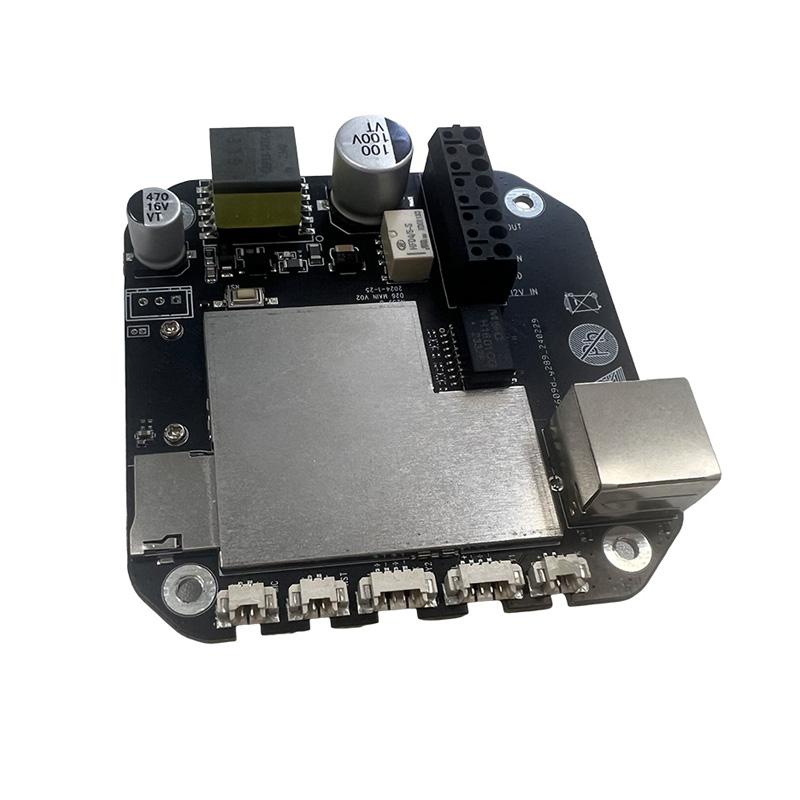

Product Image
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
