Item NO.:
SIP-K20C-MOrder(MOQ):
1Payment:
T/T,Western Union, PaypalShipping Port:
ChinaLead Time：
1 WeekWeight：
10Product Description

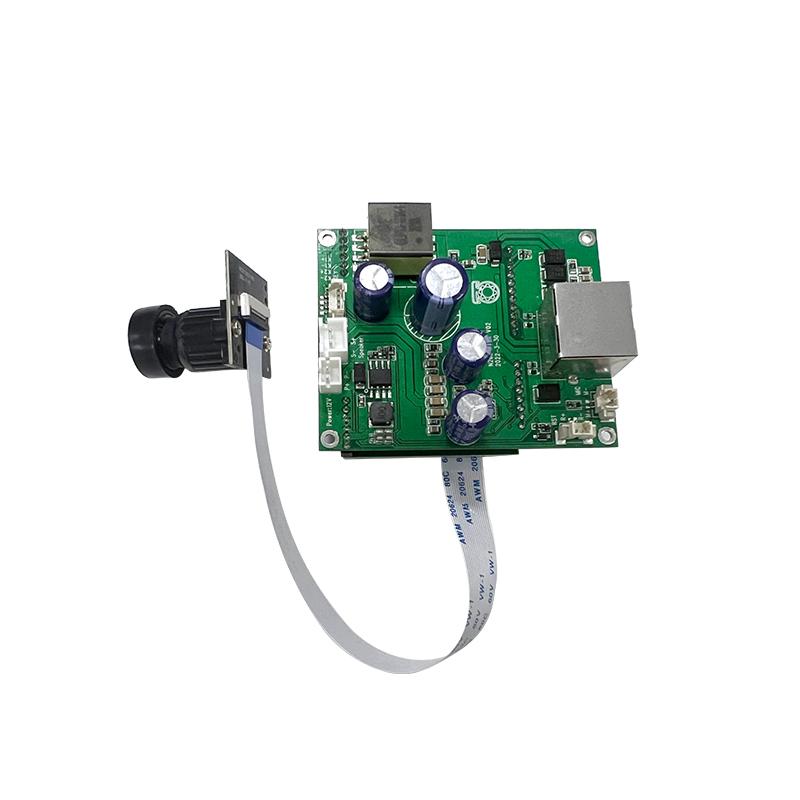

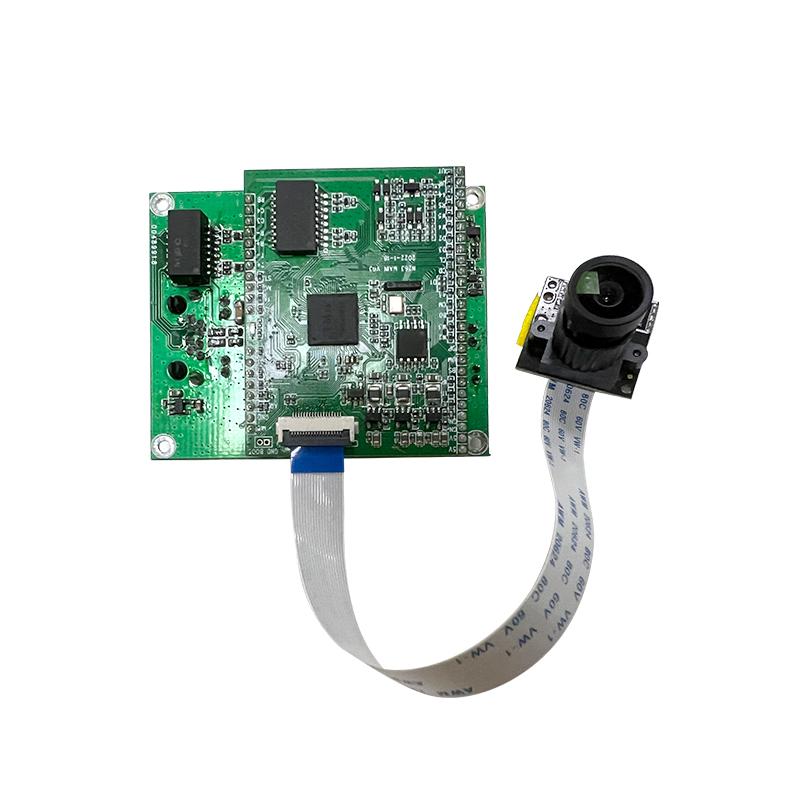

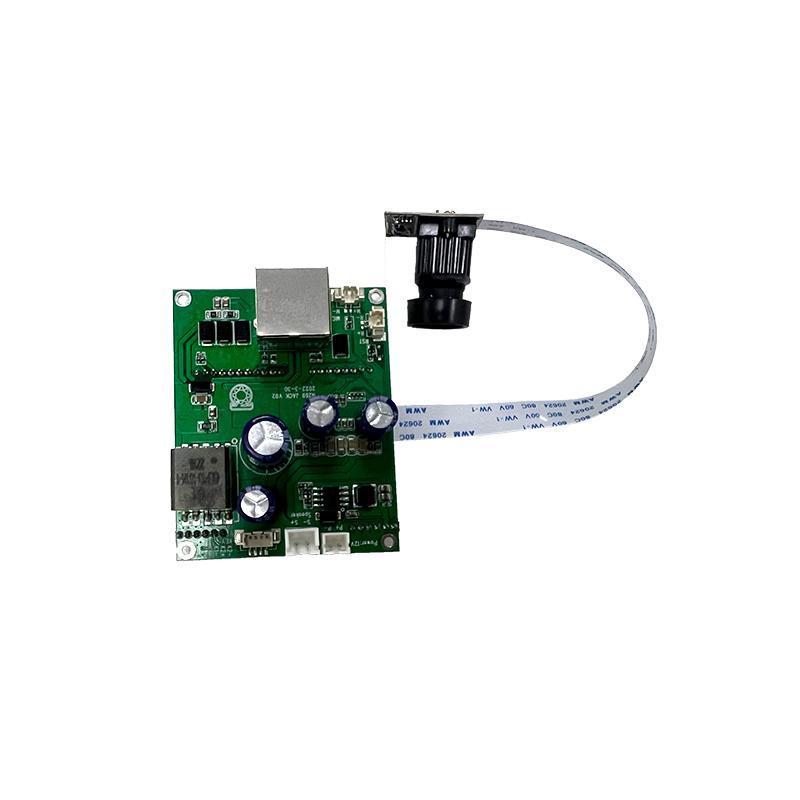

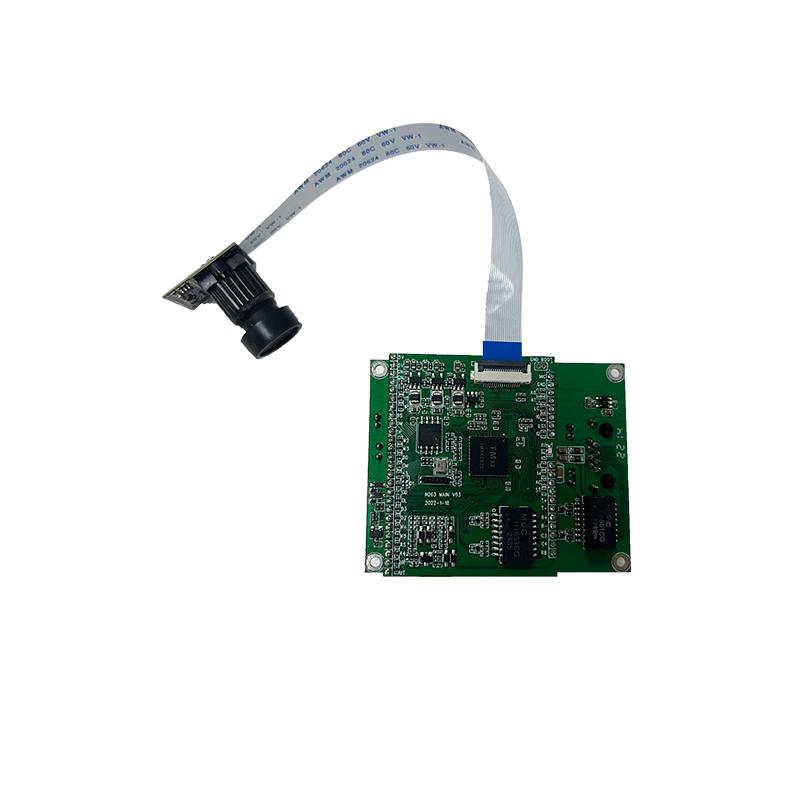

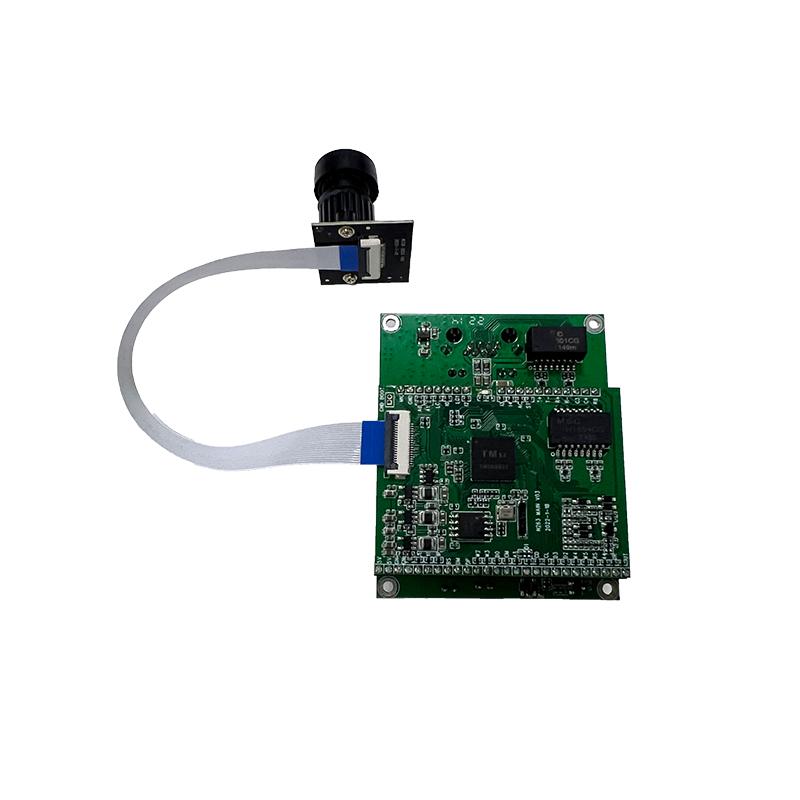

The SIP PCB Board has interface of MIC, Speaker, Alarm input and Reset. It's powered via PoE or DC 12V/24V. It's compatible with VoIP devices and ONVIF VMS. It supports two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control. It's perfect to be applied in Speaker, Intercom / Door Phone project. SIP-K20C-M and SIP-K20-M have same function except that SIP-K20C-M has camera module that supports FHD 1080P video input.
SIP PCB Board Feature
• 1080P FHD video input
• Two-way intercom communication
• Support 48K OPUS Audio Codec
• SIP & ONVIF protocol compatibility
• Pre-recorded message(WAV/MP3）
• Alarm: GPIO, HTTP URL
• MIC and speaker interface
• Reset and volume control
Specification
Video Input
1080P FHD@30fps
Protocol
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Audio Codec
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
Network Interface
RJ45, 10BASE-T/100BASE-TX
Interface
1*MIC input, 1* Speaker output, 2* IO Alarm input, 1* Reset
Power
PoE or DC 12V/24V
Rated Power
15W
Operating Temperature
-30℃ — +60℃
Operating Humidity
5%-85%
Function
Compatible with VoIP devices and ONVIF VMS, support two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control
Application
Speaker, Intercom / Door Phone
Size
65mm * 52mm * 27mm
Others
Support Web Browser Settings, Firmware Upgrade
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
